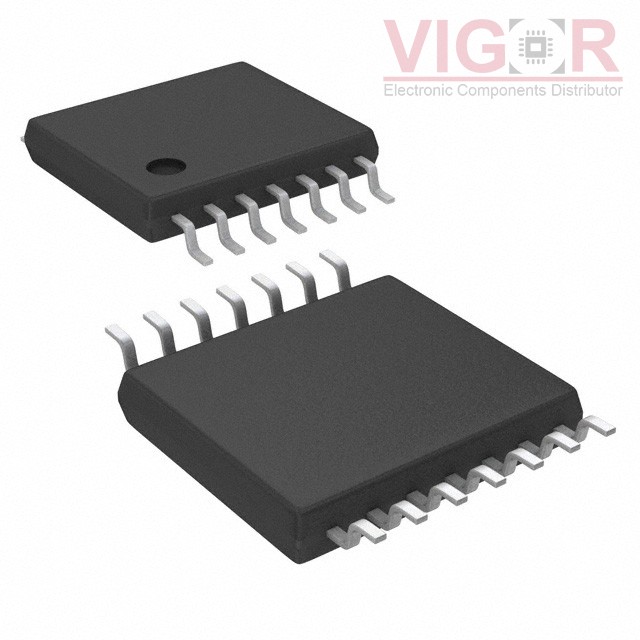

MAX5814AUD+

Part No :: MAX5814AUD+

Manufacturer: VIGOR

VIGOR # :: 3792705

Description: ULTRA-SMALL, QUAD-CHANNEL, 8-/10

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX5814AUD+ PDF

Country of origin: -

Date code: -

MAX5814AUD+ Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Number of Bits:	10
Number of D/A Converters:	4
Settling Time:	2.6µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	I²C
Reference Type:	External, Internal
Voltage - Supply, Analog:	2.7V ~ 5.5V
Voltage - Supply, Digital:	2.7V ~ 5.5V
INL/DNL (LSB):	±0.25, ±0.1
Architecture:	R-2R
Operating Temperature:	-40°C ~ 125°C
Package / Case:	14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	14-TSSOP
Mounting Type:	Surface Mount
