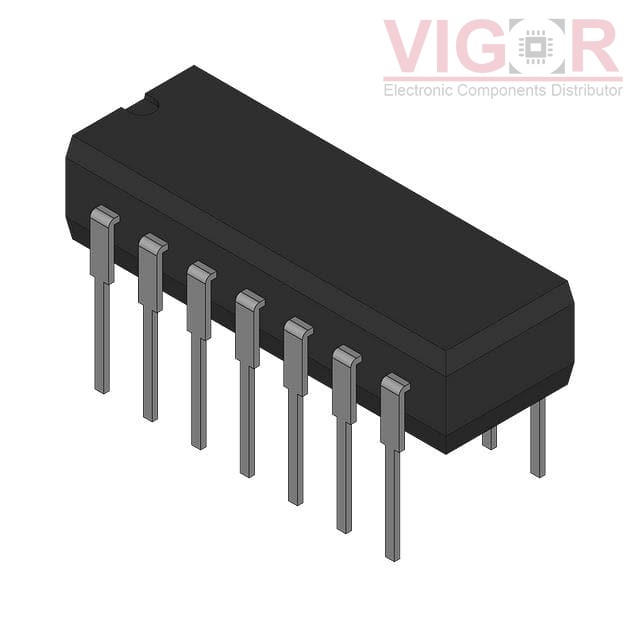

MAX504EPD

Part No :: MAX504EPD

Manufacturer: VIGOR

VIGOR # :: 3792832

Description: SERIAL 10-BIT DAC

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX504EPD PDF

Country of origin: -

Date code: -

MAX504EPD Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	10
Number of D/A Converters:	1
Settling Time:	25µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	SPI
Reference Type:	External, Internal
Voltage - Supply, Analog:	±5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	±0.5 (Max), ±1 (Max)
Architecture:	R-2R
Operating Temperature:	-40°C ~ 85°C
Package / Case:	14-DIP (0.300", 7.62mm)
Supplier Device Package:	14-PDIP
Mounting Type:	Through Hole
