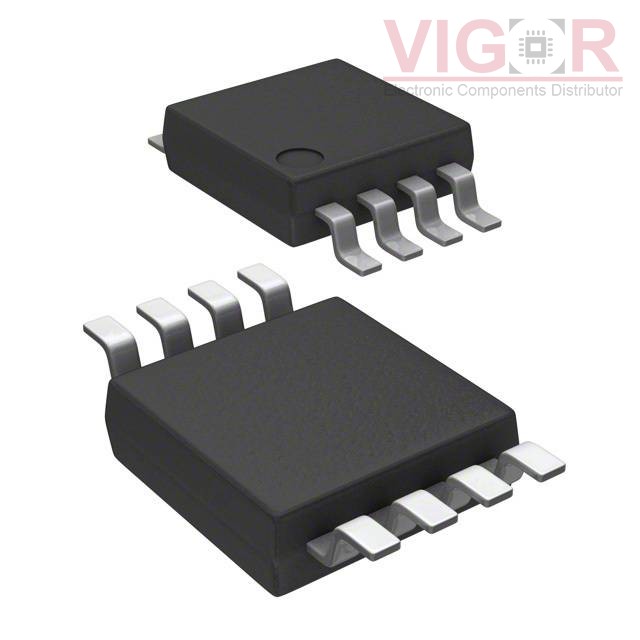

MAX5820LEUA+

Part No :: MAX5820LEUA+

Manufacturer: Maxim Integrated

VIGOR # :: 3792853

Description: IC DAC 8BIT V-OUT 8UMAX

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX5820LEUA+ PDF

Country of origin: -

Date code: -

MAX5820LEUA+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	8
Number of D/A Converters:	2
Settling Time:	12µs
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	I²C
Reference Type:	External
Voltage - Supply, Analog:	2.7V ~ 5.5V
Voltage - Supply, Digital:	2.7V ~ 5.5V
INL/DNL (LSB):	±0.5, ±0.5 (Max)
Architecture:	String DAC
Operating Temperature:	-40°C ~ 85°C
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	8-uMAX
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX5820LEUA+T Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 8UMAX	MAX5820LEUA+ vs MAX5820LEUA+T
MAX5821LEUA+T Match 100%	Maxim Integrated IC DAC 10BIT V-OUT 8UMAX	MAX5820LEUA+ vs MAX5821LEUA+T
MAX5820MEUA+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 8UMAX	MAX5820LEUA+ vs MAX5820MEUA+
MAX5821MEUA+ Match 100%	Maxim Integrated IC DAC 10BIT V-OUT 8UMAX	MAX5820LEUA+ vs MAX5821MEUA+
MAX5821LEUA+ Match 100%	Maxim Integrated IC DAC 10BIT V-OUT 8UMAX	MAX5820LEUA+ vs MAX5821LEUA+
MAX5820MEUA+T Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 8UMAX	MAX5820LEUA+ vs MAX5820MEUA+T
