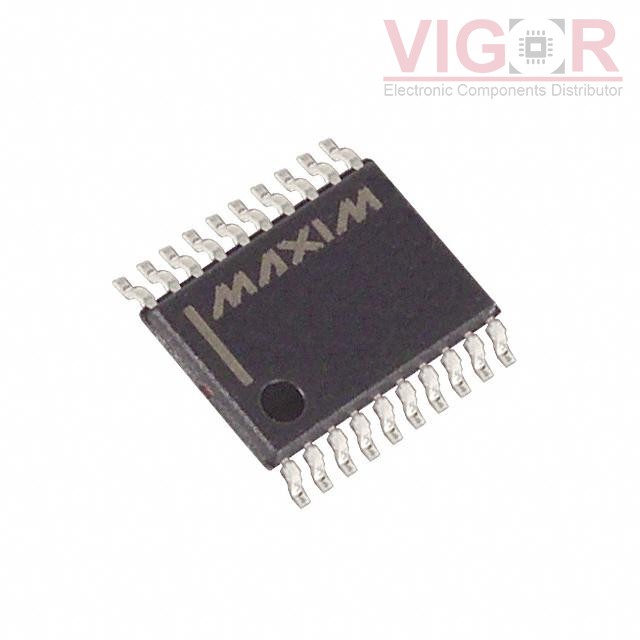

MAX5580BEUP+

Part No :: MAX5580BEUP+

Manufacturer: Maxim Integrated

VIGOR # :: 3793357

Description: IC DAC 12BIT V-OUT 20TSSOP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX5580BEUP+ PDF

Country of origin: -

Date code: -

MAX5580BEUP+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Not For New Designs
Number of Bits:	12
Number of D/A Converters:	4
Settling Time:	6µs
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	SPI, DSP
Reference Type:	External
Voltage - Supply, Analog:	2.7V ~ 5.25V
Voltage - Supply, Digital:	1.8V ~ 5.25V
INL/DNL (LSB):	±2, ±1 (Max)
Architecture:	R-2R
Operating Temperature:	-40°C ~ 85°C
Package / Case:	20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	20-TSSOP
Mounting Type:	Surface Mount
