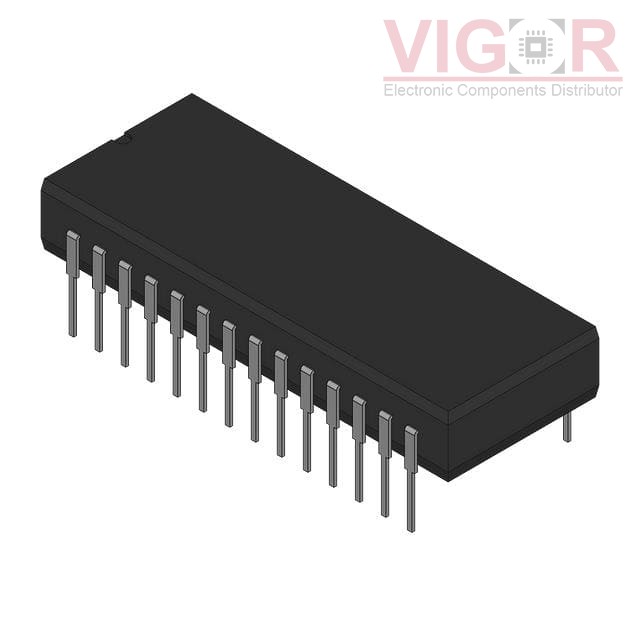

AD7564BN

Part No :: AD7564BN

Manufacturer: VIGOR

VIGOR # :: 3794260

Description: DAC, 4 CH, SERIAL INPUT LOADING

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: AD7564BN PDF

Country of origin: -

Date code: -

AD7564BN Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	12
Number of D/A Converters:	4
Settling Time:	550µs (Typ)
Output Type:	Current - Unbuffered
Differential Output:	Yes
Data Interface:	SPI
Reference Type:	External
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	±0.5 (Max), ±0.5 (Max)
Architecture:	R-2R
Operating Temperature:	-40°C ~ 85°C
Package / Case:	28-DIP (0.600", 15.24mm)
Supplier Device Package:	28-PDIP
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
AD7564BNZ Match 100%	Linear Technology (Analog Devices, Inc.) IC DAC 12BIT A-OUT 28DIP	AD7564BN vs AD7564BNZ
