AD7545JNZ

Part No :: AD7545JNZ

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3794292

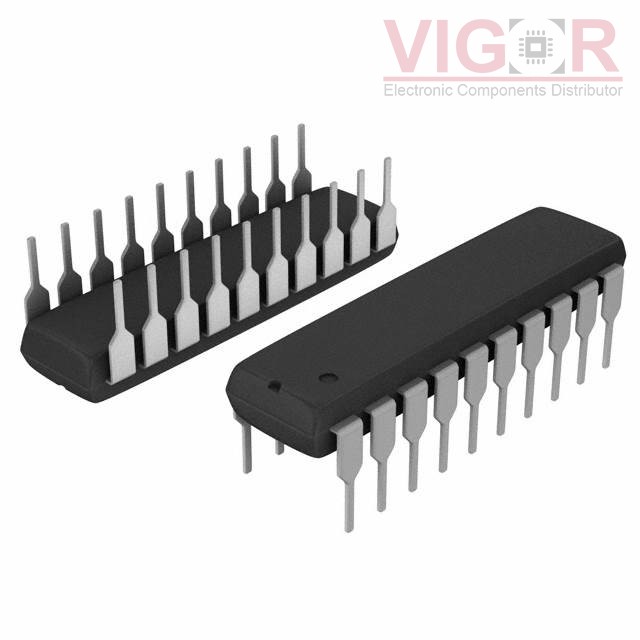

Description: IC DAC 12BIT A-OUT 20DIP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: AD7545JNZ PDF

Country of origin: -

Date code: -

AD7545JNZ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	12
Number of D/A Converters:	1
Settling Time:	2µs
Output Type:	Current - Unbuffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	5V ~ 15V
Voltage - Supply, Digital:	5V ~ 15V
INL/DNL (LSB):	±2 (Max), ±4 (Max)
Architecture:	R-2R
Operating Temperature:	0°C ~ 70°C
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
MX7545JN+ Match 100%	Maxim Integrated IC DAC 12BIT A-OUT 20DIP	AD7545JNZ vs MX7545JN+
AD7545JN Match 100%	VIGOR DAC, PARALLEL, WORD INPUT	AD7545JNZ vs AD7545JN
