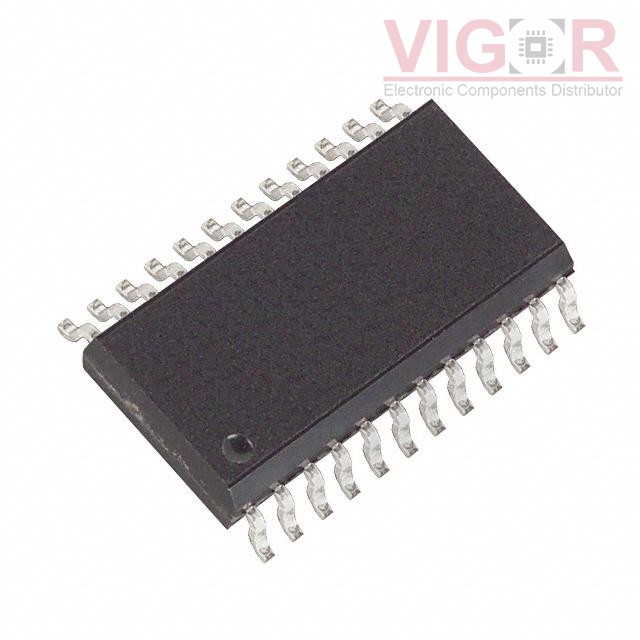

MAX505ACWG+

Part No :: MAX505ACWG+

Manufacturer: Maxim Integrated

VIGOR # :: 3794824

Description: IC DAC 8BIT V-OUT 24SOIC

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX505ACWG+ PDF

Country of origin: -

Date code: -

MAX505ACWG+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	8
Number of D/A Converters:	4
Settling Time:	6µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	±5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	-, ±1 (Max)
Architecture:	R-2R
Operating Temperature:	0°C ~ 70°C
Package / Case:	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	24-SOIC
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX505BEWG+T Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 24SOIC	MAX505ACWG+ vs MAX505BEWG+T
MAX505AEWG+ Match 100%	VIGOR MAX505 QUAD 8-BIT DAC WITH RAIL-	MAX505ACWG+ vs MAX505AEWG+
MAX505BEWG+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 24SOIC	MAX505ACWG+ vs MAX505BEWG+
MAX505ACWG+T Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 24SOIC	MAX505ACWG+ vs MAX505ACWG+T
MAX505BCWG+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 24SOIC	MAX505ACWG+ vs MAX505BCWG+
MAX505BCWG+T Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 24SOIC	MAX505ACWG+ vs MAX505BCWG+T
