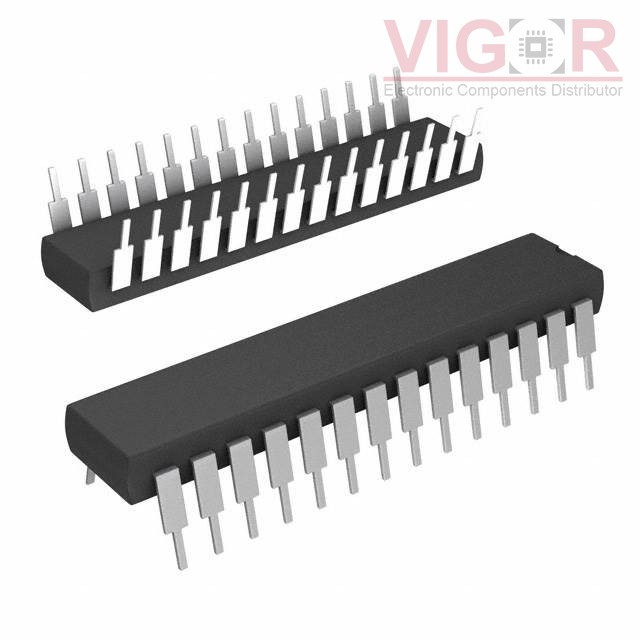

AD7846JN

Part No :: AD7846JN

Manufacturer: VIGOR

VIGOR # :: 3795634

Description: DAC, PARALLEL, WORD INPUT

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: AD7846JN PDF

Country of origin: -

Date code: -

AD7846JN Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	16
Number of D/A Converters:	1
Settling Time:	9µs
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	±11.4V ~ 15.75V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	±16 (Max), ±1 (Max)
Architecture:	String DAC
Operating Temperature:	0°C ~ 70°C
Package / Case:	28-DIP (0.600", 15.24mm)
Supplier Device Package:	28-PDIP
Mounting Type:	Through Hole
