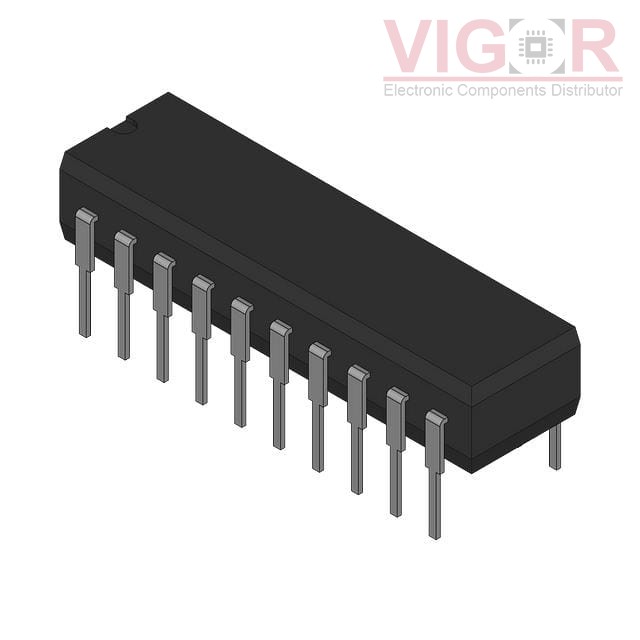

AD7534JN

Part No :: AD7534JN

Manufacturer: VIGOR

VIGOR # :: 3795735

Description: DAC, PARALLEL, 8 BITS INPUT

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: AD7534JN PDF

Country of origin: -

Date code: -

AD7534JN Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	14
Number of D/A Converters:	1
Settling Time:	1.5µs
Output Type:	Current - Unbuffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	11.4V ~ 15.75V
Voltage - Supply, Digital:	11.4V ~ 15.75V
INL/DNL (LSB):	±2 (Max), ±1 (Max)
Architecture:	R-2R
Operating Temperature:	0°C ~ 70°C
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
MX7534JN+ Match 100%	Maxim Integrated IC DAC 14BIT A-OUT 20DIP	AD7534JN vs MX7534JN+
AD7534JNZ Match 100%	Linear Technology (Analog Devices, Inc.) IC DAC 14BIT A-OUT 20DIP	AD7534JN vs AD7534JNZ
