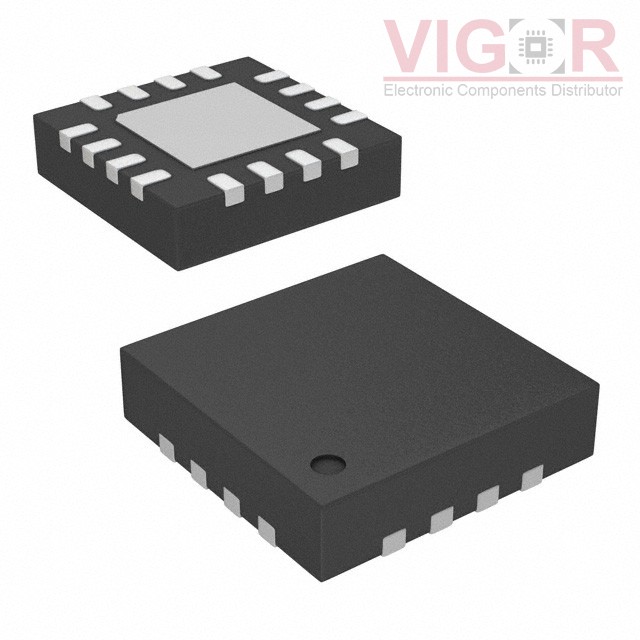

AD5684BCPZ-RL7

Part No :: AD5684BCPZ-RL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3796115

Description: IC DAC 12BIT V-OUT 16LFCSP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: AD5684BCPZ-RL7 PDF

Country of origin: -

Date code: -

AD5684BCPZ-RL7 Specifications

Type	Description
Series:	nanoDAC+®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Bits:	12
Number of D/A Converters:	4
Settling Time:	7µs
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	SPI
Reference Type:	External
Voltage - Supply, Analog:	2.7V ~ 5.5V
Voltage - Supply, Digital:	1.8V ~ 5.5V
INL/DNL (LSB):	±0.12, ±1 (Max)
Architecture:	String DAC
Operating Temperature:	-40°C ~ 105°C
Package / Case:	16-WFQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP-WQ (3x3)
Mounting Type:	Surface Mount
