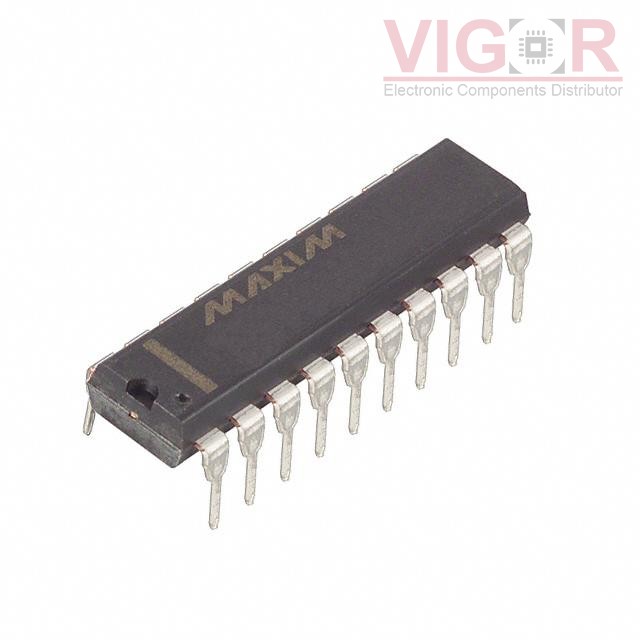

MAX506BCPP

Part No :: MAX506BCPP

Manufacturer: Maxim Integrated

VIGOR # :: 4878355

Description: IC DAC 8BIT V-OUT 20DIP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX506BCPP PDF

Country of origin: -

Date code: -

MAX506BCPP Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	8
Number of D/A Converters:	4
Settling Time:	6µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	±5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	-, ±1 (Max)
Architecture:	R-2R
Operating Temperature:	0°C ~ 70°C
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX509BCPP+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20DIP	MAX506BCPP vs MAX509BCPP+
MAX506BCPP+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20DIP	MAX506BCPP vs MAX506BCPP+
MAX506ACPP+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20DIP	MAX506BCPP vs MAX506ACPP+
MAX506BEPP+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20DIP	MAX506BCPP vs MAX506BEPP+
MAX509ACPP+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20DIP	MAX506BCPP vs MAX509ACPP+
MAX506AEPP Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20DIP	MAX506BCPP vs MAX506AEPP
