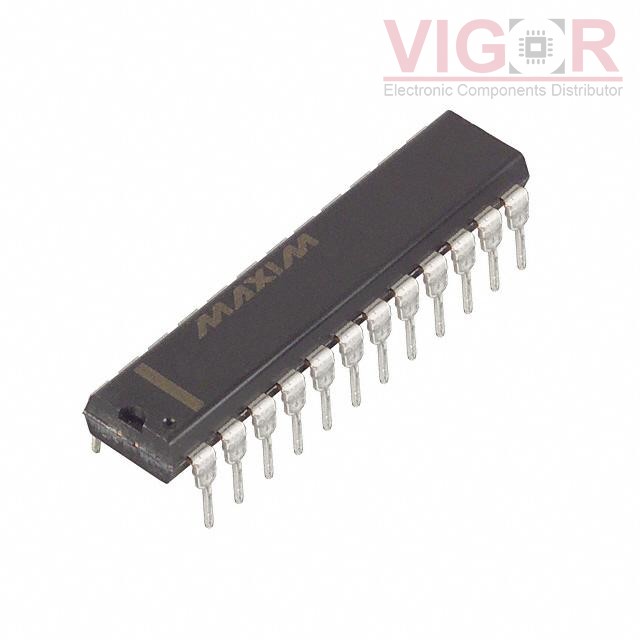

MAX514BCNG+

Part No :: MAX514BCNG+

Manufacturer: Maxim Integrated

VIGOR # :: 4878749

Description: IC DAC 12BIT A-OUT 24DIP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX514BCNG+ PDF

Country of origin: -

Date code: -

MAX514BCNG+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	12
Number of D/A Converters:	4
Settling Time:	1µs
Output Type:	Current - Unbuffered
Differential Output:	No
Data Interface:	SPI
Reference Type:	External
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	±1 (Max), ±1 (Max)
Architecture:	R-2R
Operating Temperature:	0°C ~ 70°C
Package / Case:	24-DIP (0.300", 7.62mm)
Supplier Device Package:	24-PDIP
Mounting Type:	Through Hole
