MAX509AEAP+T

Part No :: MAX509AEAP+T

Manufacturer: Maxim Integrated

VIGOR # :: 4878962

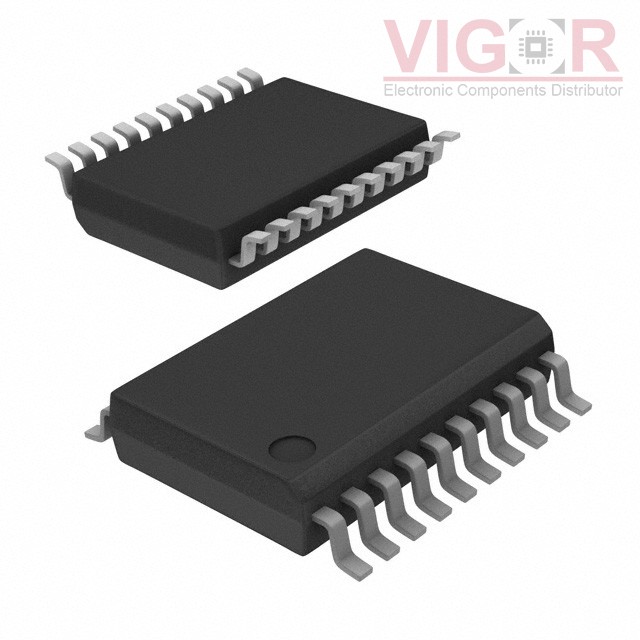

Description: IC DAC 8BIT V-OUT 20SSOP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX509AEAP+T PDF

Country of origin: -

Date code: -

MAX509AEAP+T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Bits:	8
Number of D/A Converters:	4
Settling Time:	6µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	SPI
Reference Type:	External
Voltage - Supply, Analog:	±5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	-, ±1 (Max)
Architecture:	R-2R
Operating Temperature:	-40°C ~ 85°C
Package / Case:	20-SSOP (0.209", 5.30mm Width)
Supplier Device Package:	20-SSOP
Mounting Type:	Surface Mount
