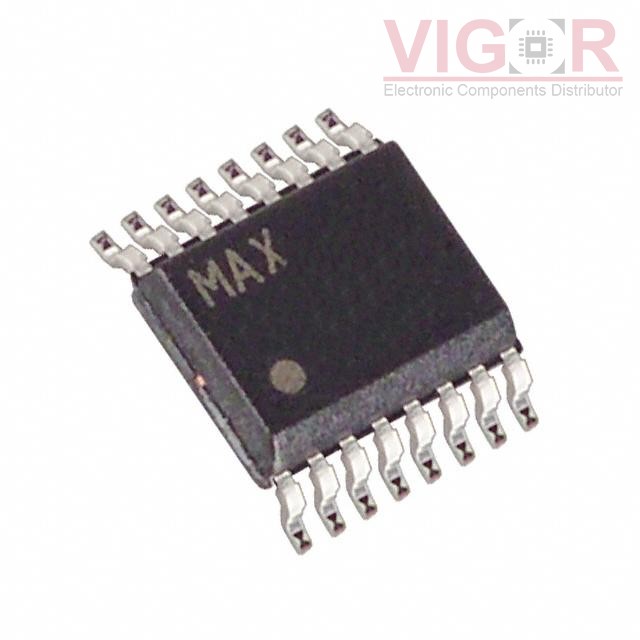

MAX5109EEE+

Part No :: MAX5109EEE+

Manufacturer: Maxim Integrated

VIGOR # :: 4879526

Description: IC DAC 8BIT V-OUT 16QSOP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX5109EEE+ PDF

Country of origin: -

Date code: -

MAX5109EEE+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	8
Number of D/A Converters:	4
Settling Time:	6µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	SPI
Reference Type:	External
Voltage - Supply, Analog:	2.7V ~ 5.5V
Voltage - Supply, Digital:	2.7V ~ 5.5V
INL/DNL (LSB):	±2 (Max), ±1 (Max)
Architecture:	String DAC
Operating Temperature:	-40°C ~ 85°C
Package / Case:	16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:	16-QSOP
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX533BEEE+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 16QSOP	MAX5109EEE+ vs MAX533BEEE+
MAX5106EEE+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 16QSOP	MAX5109EEE+ vs MAX5106EEE+
MAX5106EEE Match 100%	VIGOR MAX5106 NV, QUAD, 8-BIT DAC	MAX5109EEE+ vs MAX5106EEE
MAX5106EEE+T Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 16QSOP	MAX5109EEE+ vs MAX5106EEE+T
MAX533BEEE Match 100%	VIGOR 8-BIT QUAD DAC	MAX5109EEE+ vs MAX533BEEE
