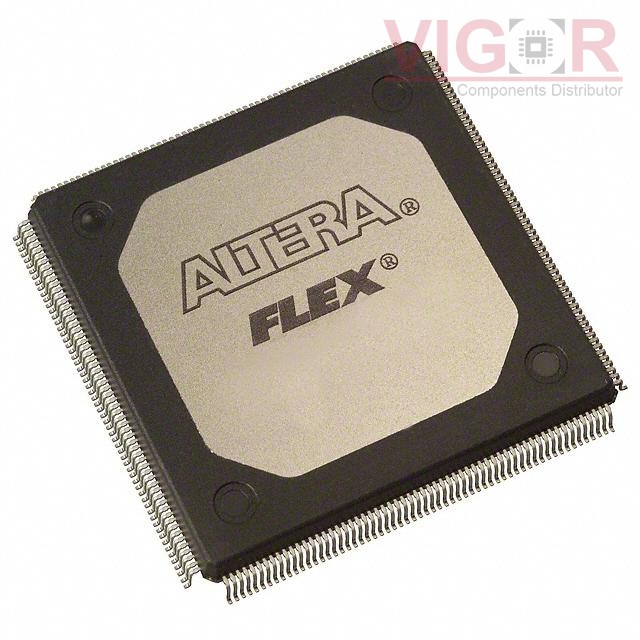

EPM9560RC240-15

Part No :: EPM9560RC240-15

Manufacturer: Intel

VIGOR # :: 4855530

Description: IC CPLD 560MC 15NS 240RQFP

Catalog: Embedded - CPLDs (Complex Programmable Logic Devices)

DataSheet: EPM9560RC240-15 PDF

Country of origin: -

Date code: -

EPM9560RC240-15 Specifications

Type	Description
Series:	MAX® 9000
Package:	Tray
Part Status:	Obsolete
Programmable Type:	In System Programmable
Delay Time tpd(1) Max:	15 ns
Voltage Supply - Internal:	4.75V ~ 5.25V
Number of Logic Elements/Blocks:	35
Number of Macrocells:	560
Number of Gates:	12000
Number of I/O:	191
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	240-BFQFP Exposed Pad
Supplier Device Package:	240-RQFP (32x32)

Alternative Products

Part Number	Manufacturer & Description	Compare
EPM9480RC240-15 Match 77%	VIGOR EE PLD, 16.4NS, 480-CELL	EPM9560RC240-15 vs EPM9480RC240-15
EPM9560RC240-15YY Match 100%	Intel IC FPGA	EPM9560RC240-15 vs EPM9560RC240-15YY

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 299

Shipped from

HK warehouse

Expected Shipping Date

Aug 01 - Aug 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of EPM9560RC240-15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
