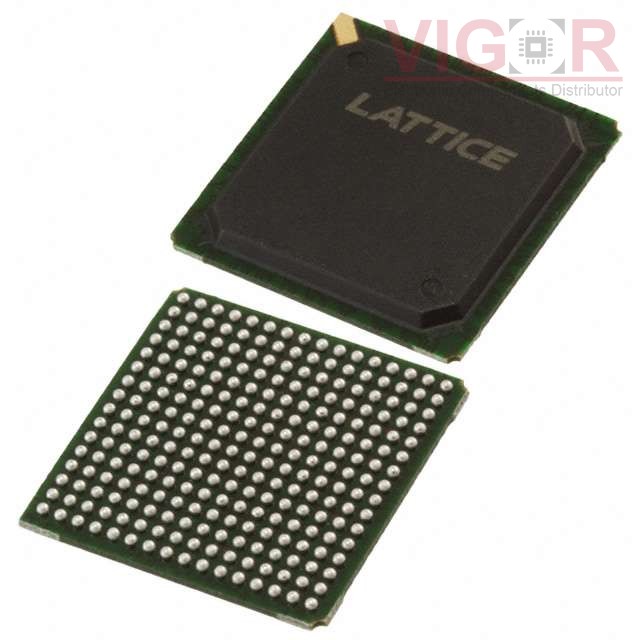

LC5256MB-5FN256C

Part No :: LC5256MB-5FN256C

Manufacturer: Lattice Semiconductor

VIGOR # :: 4855683

Description: IC CPLD 256MC 5NS 256FBGA

Catalog: Embedded - CPLDs (Complex Programmable Logic Devices)

DataSheet: LC5256MB-5FN256C PDF

Country of origin: -

Date code: -

LC5256MB-5FN256C Specifications

Type	Description
Series:	ispXPLD® 5000MB
Package:	Tray
Part Status:	Obsolete
Programmable Type:	In System Programmable
Delay Time tpd(1) Max:	5 ns
Voltage Supply - Internal:	2.3V ~ 2.7V
Number of Logic Elements/Blocks:	8
Number of Macrocells:	256
Number of Gates:	-
Number of I/O:	141
Operating Temperature:	0°C ~ 90°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	256-BGA
Supplier Device Package:	256-FPBGA (17x17)

Alternative Products

Part Number	Manufacturer & Description	Compare
LC5256MV-5F256I Match 100%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC5256MB-5FN256C vs LC5256MV-5F256I
LC5256MB-5FN256I Match 100%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC5256MB-5FN256C vs LC5256MB-5FN256I
LC5256MV-5FN256I Match 100%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC5256MB-5FN256C vs LC5256MV-5FN256I
LC5256MB-5F256I Match 100%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC5256MB-5FN256C vs LC5256MB-5F256I
LC5256MV-5FN256C Match 100%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC5256MB-5FN256C vs LC5256MV-5FN256C
LC5256MV-5F256C Match 100%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC5256MB-5FN256C vs LC5256MV-5F256C
