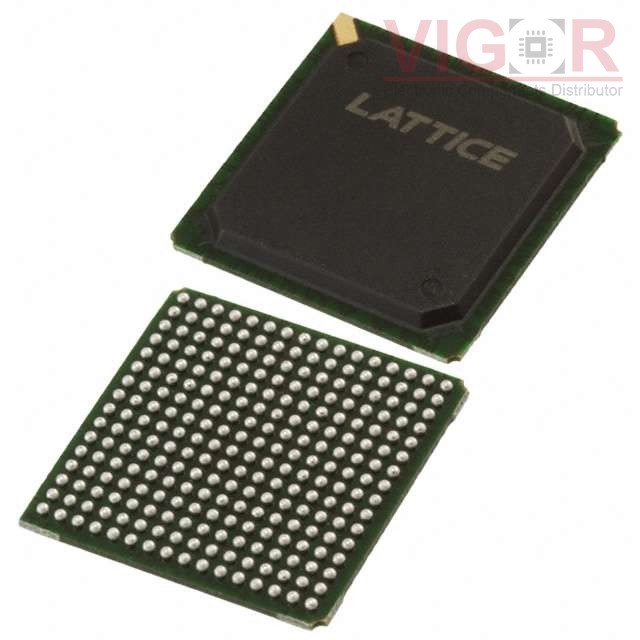

LC4256B-5FN256AI

Part No :: LC4256B-5FN256AI

Manufacturer: Lattice Semiconductor

VIGOR # :: 4856728

Description: IC CPLD 256MC 5NS 256FBGA

Catalog: Embedded - CPLDs (Complex Programmable Logic Devices)

DataSheet: LC4256B-5FN256AI PDF

Country of origin: -

Date code: -

LC4256B-5FN256AI Specifications

Type	Description
Series:	ispMACH® 4000B
Package:	Tray
Part Status:	Obsolete
Programmable Type:	In System Programmable
Delay Time tpd(1) Max:	5 ns
Voltage Supply - Internal:	2.3V ~ 2.7V
Number of Logic Elements/Blocks:	16
Number of Macrocells:	256
Number of Gates:	-
Number of I/O:	128
Operating Temperature:	-40°C ~ 105°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	256-BGA
Supplier Device Package:	256-FPBGA (17x17)

Alternative Products

Part Number	Manufacturer & Description	Compare
LC4256C-5FN256BI Match 84%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC4256B-5FN256AI vs LC4256C-5FN256BI
LC4256B-5FN256BI Match 84%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC4256B-5FN256AI vs LC4256B-5FN256BI
LC5256MV-5F256I Match 57%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC4256B-5FN256AI vs LC5256MV-5F256I
LC5256MB-5FN256I Match 57%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC4256B-5FN256AI vs LC5256MB-5FN256I
LC4256B-5F256BI Match 84%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC4256B-5FN256AI vs LC4256B-5F256BI
LC5256MV-5FN256I Match 57%	Lattice Semiconductor IC CPLD 256MC 5NS 256FBGA	LC4256B-5FN256AI vs LC5256MV-5FN256I
