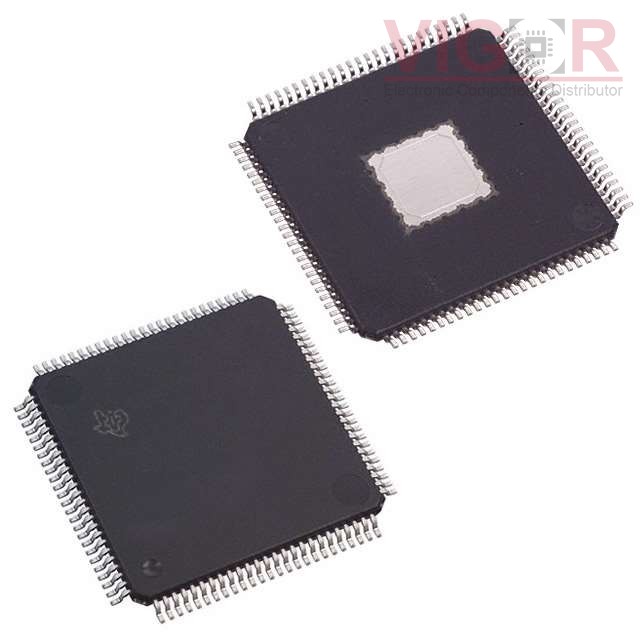

TMS320F28069UPZPS

Part No :: TMS320F28069UPZPS

Manufacturer: Texas Instruments

VIGOR # :: 3647502

Description: IC MCU 32BIT 256KB FLSH 100HTQFP

Catalog: Embedded - Microcontrollers

DataSheet: TMS320F28069UPZPS PDF

Country of origin: -

Date code: -

TMS320F28069UPZPS Specifications

Type	Description
Series:	C2000™ C28x Piccolo™
Package:	Tray
Part Status:	Active
Core Processor:	C28x
Core Size:	32-Bit
Speed:	90MHz
Connectivity:	CANbus, I²C, McBSP, SCI, SPI, UART/USART, USB
Peripherals:	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O:	54
Program Memory Size:	256KB (128K x 16)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	50K x 16
Voltage - Supply (Vcc/Vdd):	1.71V ~ 1.995V
Data Converters:	A/D 16x12b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	100-TQFP Exposed Pad
Supplier Device Package:	100-HTQFP (14x14)

Alternative Products

Part Number	Manufacturer & Description	Compare
TMS320F28065UPZPS Match 74%	Texas Instruments IC MCU 32BIT 128KB FLSH 100HTQFP	TMS320F28069UPZPS vs TMS320F28065UPZPS
TMS320F28066UPZPS Match 85%	Texas Instruments IC MCU 32BIT 256KB FLSH 100HTQFP	TMS320F28069UPZPS vs TMS320F28066UPZPS
TMS320F28067UPZPS Match 100%	Texas Instruments IC MCU 32BIT 256KB FLSH 100HTQFP	TMS320F28069UPZPS vs TMS320F28067UPZPS
TMS320F28064UPZPS Match 74%	Texas Instruments IC MCU 32BIT 128KB FLSH 100HTQFP	TMS320F28069UPZPS vs TMS320F28064UPZPS
TMS320F28068UPZPS Match 100%	Texas Instruments IC MCU 32BIT 256KB FLSH 100HTQFP	TMS320F28069UPZPS vs TMS320F28068UPZPS
TMS320F28063UPZPS Match 59%	Texas Instruments IC MCU 32BIT 128KB FLSH 100HTQFP	TMS320F28069UPZPS vs TMS320F28063UPZPS

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 474

Shipped from

HK warehouse

Expected Shipping Date

Aug 02 - Aug 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$20.6700~~	~~$20.67~~
10	~~$18.9929~~	~~$189.93~~
90	~~$18.2054~~	~~$1 638.48~~
180	~~$16.0404~~	~~$2 887.27~~
540	~~$14.2691~~	~~$7 705.30~~

Current price of TMS320F28069UPZPS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
