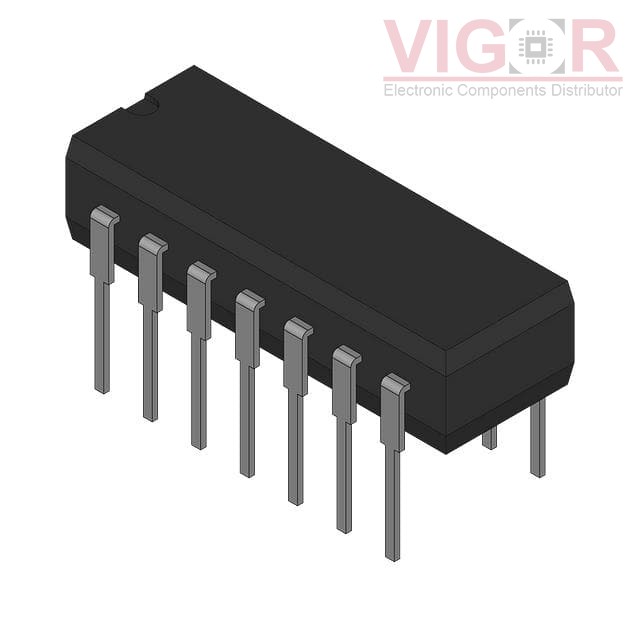

DG305ACJ

Part No :: DG305ACJ

Manufacturer: VIGOR

VIGOR # :: 3924475

Description: DG305 SINGLE SPDT SWITCH

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG305ACJ PDF

Country of origin: -

Date code: -

DG305ACJ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	1
On-State Resistance (Max):	50Ohm
Channel-to-Channel Matching (ΔRon):	-
Voltage - Supply, Single (V+):	-
Voltage - Supply, Dual (V±):	±5V ~ 18V
Switch Time (Ton, Toff) (Max):	250ns, 150ns
-3db Bandwidth:	-
Charge Injection:	12pC
Channel Capacitance (CS(off), CD(off)):	14pF, 14pF
Current - Leakage (IS(off)) (Max):	5nA
Crosstalk:	-74dB @ 500kHz
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Through Hole
Package / Case:	14-DIP (0.300", 7.62mm)
Supplier Device Package:	14-PDIP
