DG2738DN-T1-E4

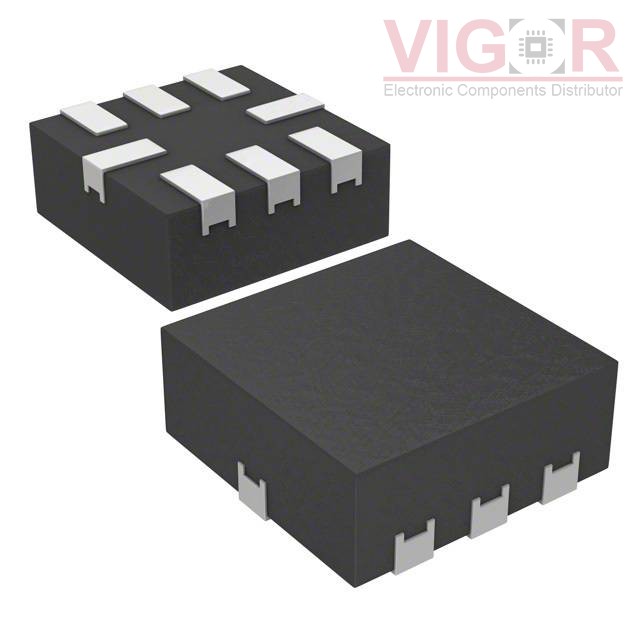

Image is for reference,
please contact us to get the real picture

Part No :: DG2738DN-T1-E4

Manufacturer: Vishay / Siliconix

Description: IC SWITCH 2XSPST 8 OHM 8MINIQFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG2738DN-T1-E4 PDF

Availability: 132 pieces

Unit Price: ~~$0.91000~~

Current price of DG2738DN-T1-E4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DG2738DN-T1-E4 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Switch Circuit:	SPST - NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	2
On-State Resistance (Max):	8Ohm
Channel-to-Channel Matching (ΔRon):	100mOhm
Voltage - Supply, Single (V+):	2.3V ~ 4.3V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	60ns, 50ns
-3db Bandwidth:	720MHz
Charge Injection:	10.4pC
Channel Capacitance (CS(off), CD(off)):	4.4pF, 3.8pF
Current - Leakage (IS(off)) (Max):	10nA
Crosstalk:	-109dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-UFQFN
Supplier Device Package:	8-miniQFN (1.4x1.4)
