ADG798HFZ

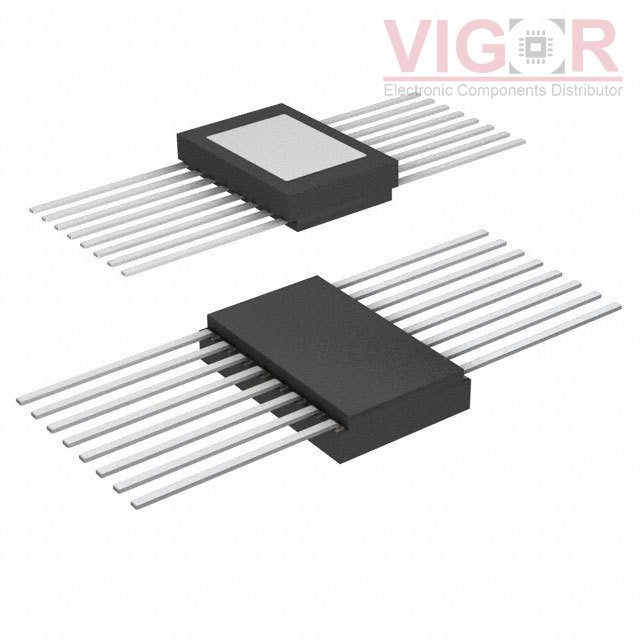

Image is for reference,
please contact us to get the real picture

Part No :: ADG798HFZ

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC MUX/DEMUX 8:1 16FLATPACK

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG798HFZ PDF

Availability: 2704 pieces

Unit Price: ~~$149.04000~~

Current price of ADG798HFZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADG798HFZ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	8:1
Number of Circuits:	1
On-State Resistance (Max):	10Ohm
Channel-to-Channel Matching (ΔRon):	1.25Ohm
Voltage - Supply, Single (V+):	3V ~ 5.5V
Voltage - Supply, Dual (V±):	±2.5V
Switch Time (Ton, Toff) (Max):	30ns, 20ns
-3db Bandwidth:	55MHz
Charge Injection:	3pC
Channel Capacitance (CS(off), CD(off)):	13pF, 85pF
Current - Leakage (IS(off)) (Max):	180nA
Crosstalk:	-60dB @ 10MHz
Operating Temperature:	-55°C ~ 210°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-CFlatPack
Supplier Device Package:	16-CFlatPack
