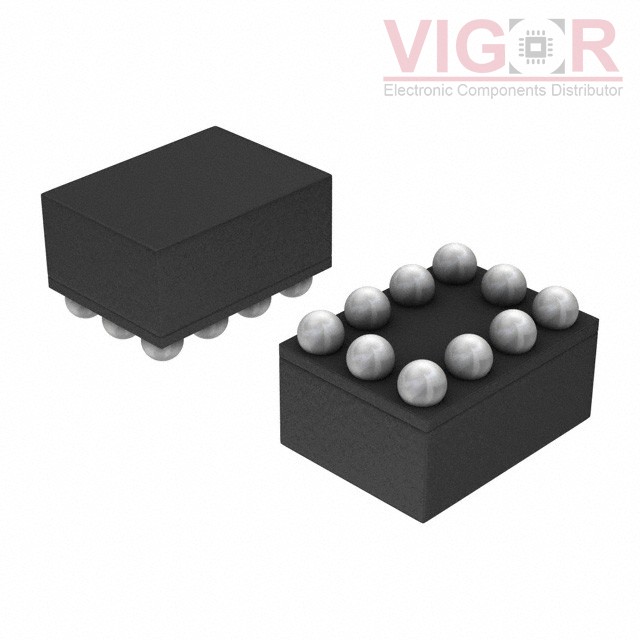

NLAS4684FCT1

Part No :: NLAS4684FCT1

Manufacturer: VIGOR

VIGOR # :: 3924793

Description: SPDT, 2 FUNC, PBGA10

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: NLAS4684FCT1 PDF

Country of origin: -

Date code: -

NLAS4684FCT1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	800mOhm
Channel-to-Channel Matching (ΔRon):	60mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	30ns, 30ns
-3db Bandwidth:	9.5MHz
Charge Injection:	15pC
Channel Capacitance (CS(off), CD(off)):	102pF, 104pF
Current - Leakage (IS(off)) (Max):	1µA
Crosstalk:	-83dB @ 100kHz
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-UFBGA, FCBGA
Supplier Device Package:	10-Microbump (1.97x1.47)

Alternative Products

Part Number	Manufacturer & Description	Compare
NLAS4684FCTCG Match 100%	Sanyo Semiconductor/ON Semiconductor IC SWITCH DUAL SPDT 10MICROBUMP	NLAS4684FCT1 vs NLAS4684FCTCG
NLAS4684MNR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC SWITCH DUAL SPDT 10DFN	NLAS4684FCT1 vs NLAS4684MNR2G
NLAS4684MR2 Match 100%	VIGOR SPDT, 2 FUNC, 1 CHANNEL, CMOS	NLAS4684FCT1 vs NLAS4684MR2
NLAS4684MNR2 Match 100%	VIGOR SPDT, 2 FUNC, 1 CHANNEL, CMOS	NLAS4684FCT1 vs NLAS4684MNR2
NLAS4684FCT1G Match 100%	Sanyo Semiconductor/ON Semiconductor IC SWITCH DUAL SPDT 10MICROBUMP	NLAS4684FCT1 vs NLAS4684FCT1G
NLAS4684MR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC SWITCH DUAL SPDT MICRO10	NLAS4684FCT1 vs NLAS4684MR2G

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 157

Shipped from

HK warehouse

Expected Shipping Date

Oct 20 - Oct 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.4700~~	~~$0.47~~

Current price of NLAS4684FCT1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
