NLAS5223BMUR2G

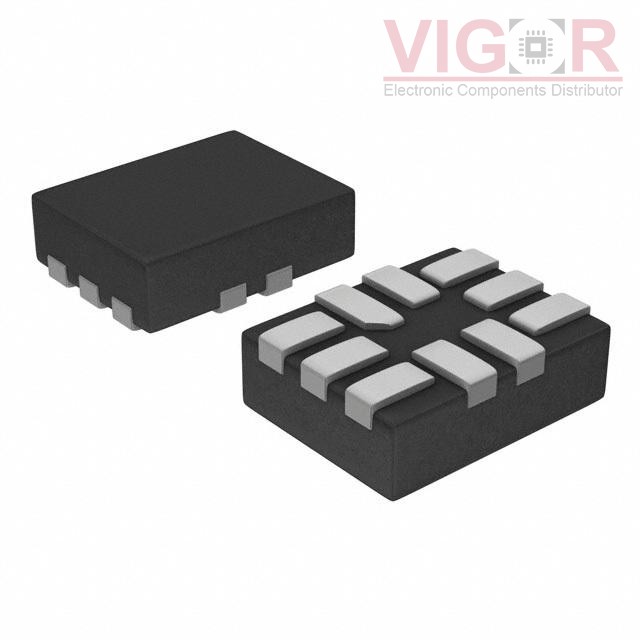

Image is for reference,
please contact us to get the real picture

Part No :: NLAS5223BMUR2G

Manufacturer: VIGOR

Description: SPDT, 2 FUNC, 1 CHANNEL, CMOS

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: NLAS5223BMUR2G PDF

Availability: 280 pieces

Unit Price: ~~$0.22000~~

Current price of NLAS5223BMUR2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NLAS5223BMUR2G Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	350mOhm
Channel-to-Channel Matching (ΔRon):	50mOhm (Max)
Voltage - Supply, Single (V+):	1.65V ~ 4.5V
Voltage - Supply, Dual (V±):	1.65V ~ 4.5V
Switch Time (Ton, Toff) (Max):	50ns, 30ns
-3db Bandwidth:	19MHz
Charge Injection:	38pC
Channel Capacitance (CS(off), CD(off)):	60pF
Current - Leakage (IS(off)) (Max):	500nA
Crosstalk:	-70dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-UFQFN
Supplier Device Package:	10-UQFN (1.4x1.8)
