ADG722ACPZ-REEL7

Part No :: ADG722ACPZ-REEL7

Manufacturer: VIGOR

VIGOR # :: 3925128

Description: DUAL SPST SWITCH

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG722ACPZ-REEL7 PDF

Country of origin: -

Date code: -

ADG722ACPZ-REEL7 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Switch Circuit:	SPST - NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	2
On-State Resistance (Max):	4Ohm
Channel-to-Channel Matching (ΔRon):	300mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	14ns, 6ns (Typ)
-3db Bandwidth:	200MHz
Charge Injection:	2pC
Channel Capacitance (CS(off), CD(off)):	7pF, 7pF
Current - Leakage (IS(off)) (Max):	250pA
Crosstalk:	-97dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

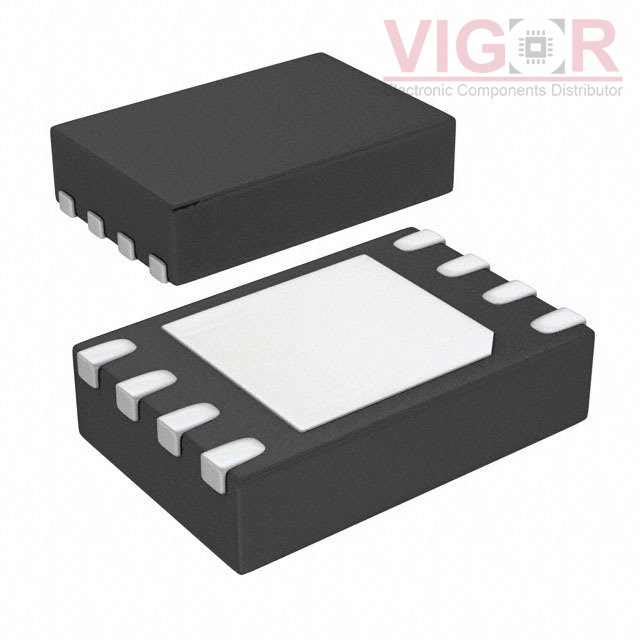

Package / Case:	8-WFDFN Exposed Pad, CSP
Supplier Device Package:	8-LFCSP-WD (2x3)

Alternative Products

Part Number	Manufacturer & Description	Compare
NLASTV4599DFT2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC SWITCH DPDT SGL TTL SC88-6	ADG722ACPZ-REEL7 vs NLASTV4599DFT2G
74HC1G66GV-Q100H Match 100%	Nexperia IC ANLG SWITCH SPST 5TSOP	ADG722ACPZ-REEL7 vs 74HC1G66GV-Q100H
ADG741BKSZ-REEL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH SPST SC70-6	ADG722ACPZ-REEL7 vs ADG741BKSZ-REEL7
MAX4524LEUB+T Match 100%	Maxim Integrated IC MUX/SW ANLG CMOS LV 10UMAX	ADG722ACPZ-REEL7 vs MAX4524LEUB+T
CD74HC4066M96E4 Match 100%	Texas Instruments IC SWITCH QUAD 1X2 14SOIC	ADG722ACPZ-REEL7 vs CD74HC4066M96E4
ADG1434YRUZ-REEL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH QUAD SPDT 20TSSOP	ADG722ACPZ-REEL7 vs ADG1434YRUZ-REEL7

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 43542

Shipped from

HK warehouse

Expected Shipping Date

Sep 04 - Sep 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.9900~~	~~$0.99~~

Current price of ADG722ACPZ-REEL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
