NJU4052BM

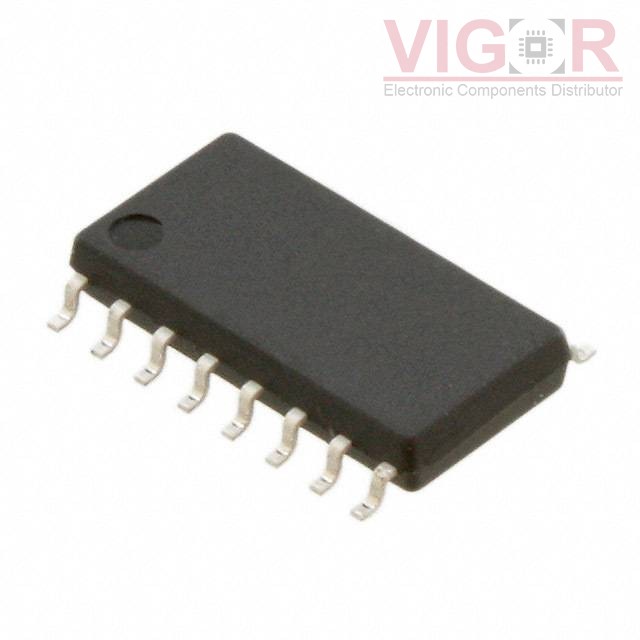

Image is for reference,
please contact us to get the real picture

Part No :: NJU4052BM

Manufacturer: New Japan Radio (NJR)

Description: IC MUX/DEMUX DUAL 4X1 16DMP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: NJU4052BM PDF

Availability: 795 pieces

Unit Price: ~~$0.69451~~

Current price of NJU4052BM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NJU4052BM Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	160Ohm
Channel-to-Channel Matching (ΔRon):	5Ohm
Voltage - Supply, Single (V+):	3V ~ 18V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	500ns, 500ns
-3db Bandwidth:	-
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	5pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package:	16-DMP

Please confirm the specifications of the products when ordering.
