STG3693QTR

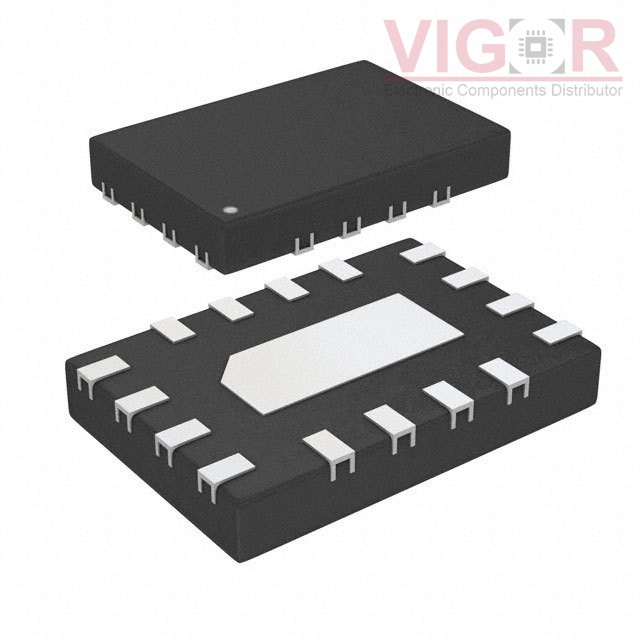

Image is for reference,
please contact us to get the real picture

Part No :: STG3693QTR

Manufacturer: STMicroelectronics

Description: IC SWITCH QUAD SPDT 16QFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: STG3693QTR PDF

Availability: 8460 pieces

Unit Price: ~~$1.12000~~

Current price of STG3693QTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STG3693QTR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	4
On-State Resistance (Max):	5.2Ohm
Channel-to-Channel Matching (ΔRon):	300mOhm
Voltage - Supply, Single (V+):	1.65V ~ 4.3V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	15ns, 5ns
-3db Bandwidth:	800MHz
Charge Injection:	5pC
Channel Capacitance (CS(off), CD(off)):	5pF
Current - Leakage (IS(off)) (Max):	20nA
Crosstalk:	-78dB @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-UFQFN Exposed Pad
Supplier Device Package:	16-QFN (2.6x1.8)
