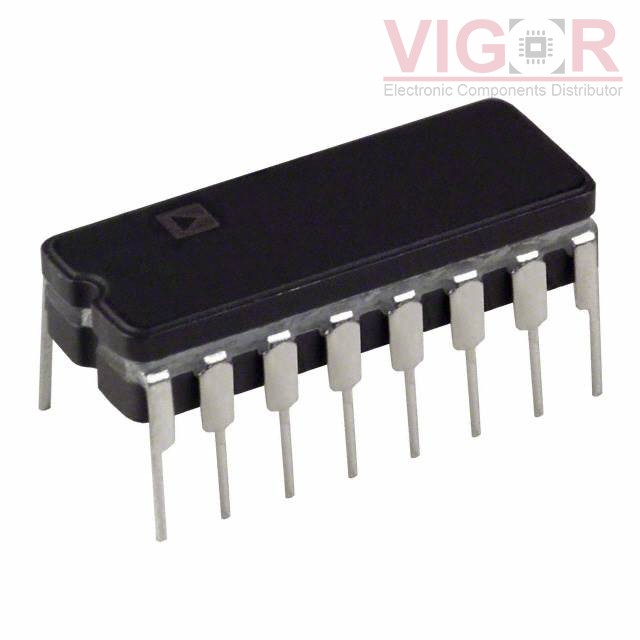

AD7503KQ

Part No :: AD7503KQ

Manufacturer: VIGOR

VIGOR # :: 3925469

Description: SINGLE-ENDED MUX,8 CHANNEL

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: AD7503KQ PDF

Country of origin: -

Date code: -

AD7503KQ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	8:1
Number of Circuits:	1
On-State Resistance (Max):	300Ohm
Channel-to-Channel Matching (ΔRon):	12Ohm
Voltage - Supply, Single (V+):	-
Voltage - Supply, Dual (V±):	±15V
Switch Time (Ton, Toff) (Max):	800ns, 800ns (Typ)
-3db Bandwidth:	-
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	5pF, 30pF
Current - Leakage (IS(off)) (Max):	2nA
Crosstalk:	-
Operating Temperature:	-25°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	16-CDIP (0.300", 7.62mm)
Supplier Device Package:	16-CDIP
