ISL8499IRZ

ISL8499IRZ

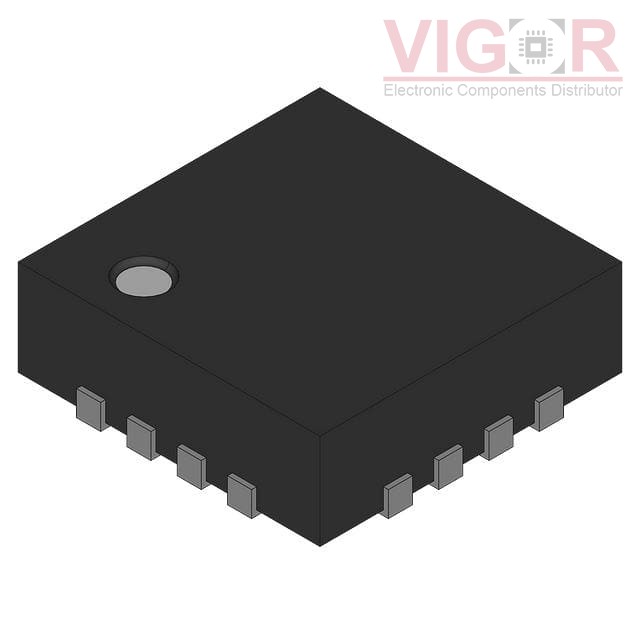

Image is for reference,
please contact us to get the real picture

Part No :

ISL8499IRZ

Manufacturer
VIGOR
Description
ULTRA LOW ON-RESISTANCE, SINGLE
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Oct 07 - Oct 11 2025
DataSheet
ISL8499IRZ PDF
Availability
76 pieces
Unit Price
$3.37000

Current price of ISL8499IRZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ISL8499IRZ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:4
On-State Resistance (Max):250mOhm
Channel-to-Channel Matching (ΔRon):40mOhm
Voltage - Supply, Single (V+):1.65V ~ 4.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):25ns, 23ns
-3db Bandwidth:-
Charge Injection:-120pC
Channel Capacitance (CS(off), CD(off)):106pF
Current - Leakage (IS(off)) (Max):50nA
Crosstalk:-98dB @ 100kHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-VFQFN Exposed Pad
Supplier Device Package:16-QFN (3x3)
