ADG787BCB-REEL7

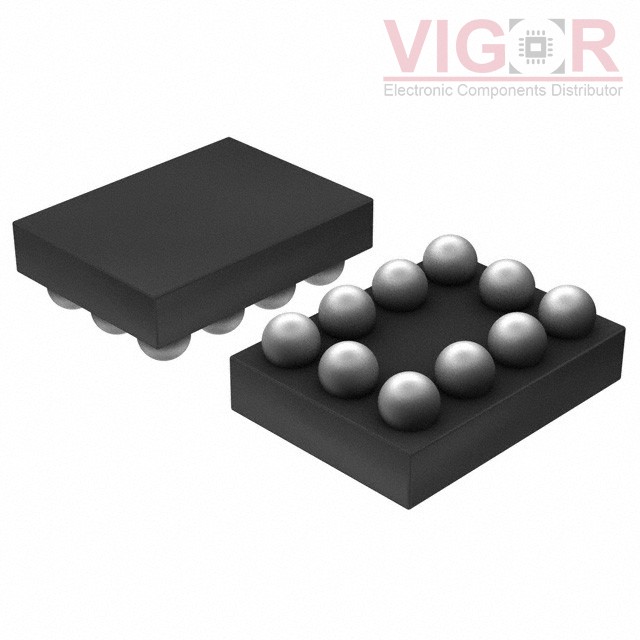

Image is for reference,
please contact us to get the real picture

Part No :

ADG787BCB-REEL7

Manufacturer
VIGOR
Description
DUAL 2:1 MUX/DEMUX USB SWITCH
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Oct 13 - Oct 17 2025
DataSheet
ADG787BCB-REEL7 PDF
Availability
2017 pieces
Unit Price
$1.24000

Current price of ADG787BCB-REEL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:2
On-State Resistance (Max):3Ohm
Channel-to-Channel Matching (ΔRon):20mOhm
Voltage - Supply, Single (V+):1.8V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):19ns, 5ns
-3db Bandwidth:145MHz
Charge Injection:14pC
Channel Capacitance (CS(off), CD(off)):16pF
Current - Leakage (IS(off)) (Max):50pA (Typ)
Crosstalk:-110dB @ 1MHz
Operating Temperature:-25°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:10-UFBGA, WLCSP
Supplier Device Package:10-WLCSP (2.0x1.5)
