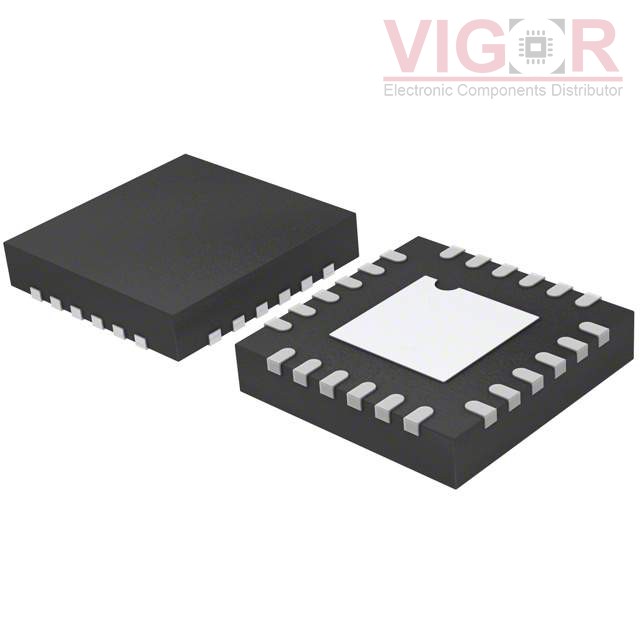

ADG1414BCPZ-REEL7

Part No :: ADG1414BCPZ-REEL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3926168

Description: IC SW SPST 9.5OHM RON 24LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG1414BCPZ-REEL7 PDF

Country of origin: -

Date code: -

ADG1414BCPZ-REEL7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPST - NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	8
On-State Resistance (Max):	11.5Ohm
Channel-to-Channel Matching (ΔRon):	550mOhm
Voltage - Supply, Single (V+):	12V
Voltage - Supply, Dual (V±):	±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max):	93ns, 35ns
-3db Bandwidth:	256MHz
Charge Injection:	10pC
Channel Capacitance (CS(off), CD(off)):	8pF
Current - Leakage (IS(off)) (Max):	150pA
Crosstalk:	-75dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-WFQFN Exposed Pad, CSP
Supplier Device Package:	24-LFCSP-WQ (4x4)
