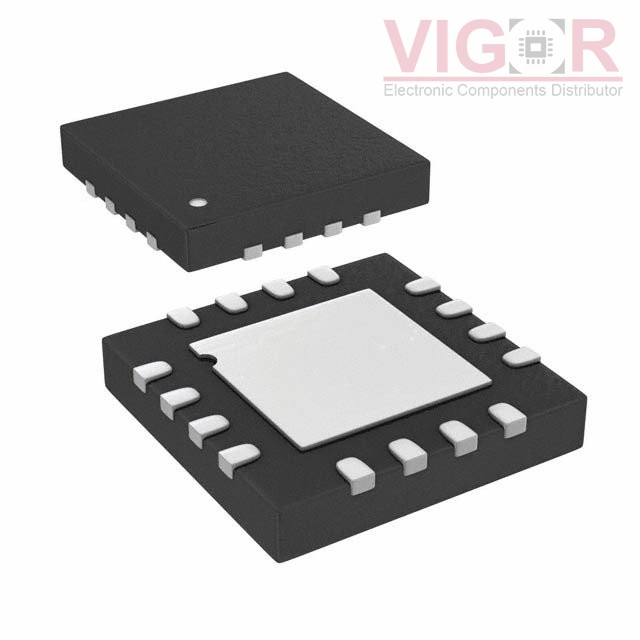

ADG5413BCPZ-REEL7

Part No :: ADG5413BCPZ-REEL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3926502

Description: IC SWITCH QUAD SPST 16LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG5413BCPZ-REEL7 PDF

Country of origin: -

Date code: -

ADG5413BCPZ-REEL7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPST - NO/NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	10Ohm
Channel-to-Channel Matching (ΔRon):	350mOhm
Voltage - Supply, Single (V+):	9V ~ 40V
Voltage - Supply, Dual (V±):	±9V ~ 22V
Switch Time (Ton, Toff) (Max):	187ns, 138ns
-3db Bandwidth:	160MHz
Charge Injection:	310pC
Channel Capacitance (CS(off), CD(off)):	17pF, 17pF
Current - Leakage (IS(off)) (Max):	250pA
Crosstalk:	-70dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-WQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP-WQ (4x4)
