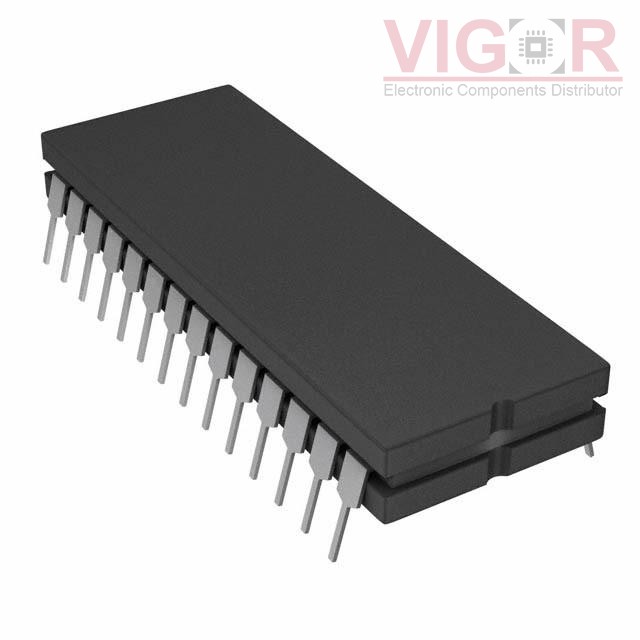

AD7506JQ

Part No :: AD7506JQ

Manufacturer: VIGOR

VIGOR # :: 3926847

Description: SINGLE-ENDED MUX,16 CHANNEL

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: AD7506JQ PDF

Country of origin: -

Date code: -

AD7506JQ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	16:1
Number of Circuits:	1
On-State Resistance (Max):	450Ohm
Channel-to-Channel Matching (ΔRon):	18Ohm
Voltage - Supply, Single (V+):	-
Voltage - Supply, Dual (V±):	±15V
Switch Time (Ton, Toff) (Max):	1.5µs, 1µs
-3db Bandwidth:	-
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	5pF, 40pF
Current - Leakage (IS(off)) (Max):	-
Crosstalk:	-
Operating Temperature:	-25°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	28-CDIP (0.600", 15.24mm)
Supplier Device Package:	28-CDIP
