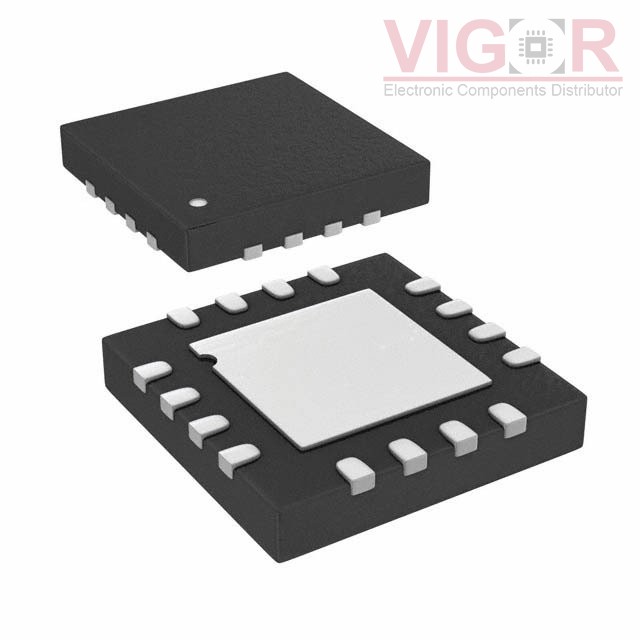

ADG5209FBCPZ-RL7

Part No :: ADG5209FBCPZ-RL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3926863

Description: IC SWITCH SP4T DUAL 16LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG5209FBCPZ-RL7 PDF

Country of origin: -

Date code: -

ADG5209FBCPZ-RL7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	160Ohm
Channel-to-Channel Matching (ΔRon):	3.5Ohm
Voltage - Supply, Single (V+):	9V ~ 40V
Voltage - Supply, Dual (V±):	±9V ~ 22V
Switch Time (Ton, Toff) (Max):	140ns, 185ns
-3db Bandwidth:	130MHz
Charge Injection:	0.4pC
Channel Capacitance (CS(off), CD(off)):	4pF, 8pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-WQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP (4x4)
