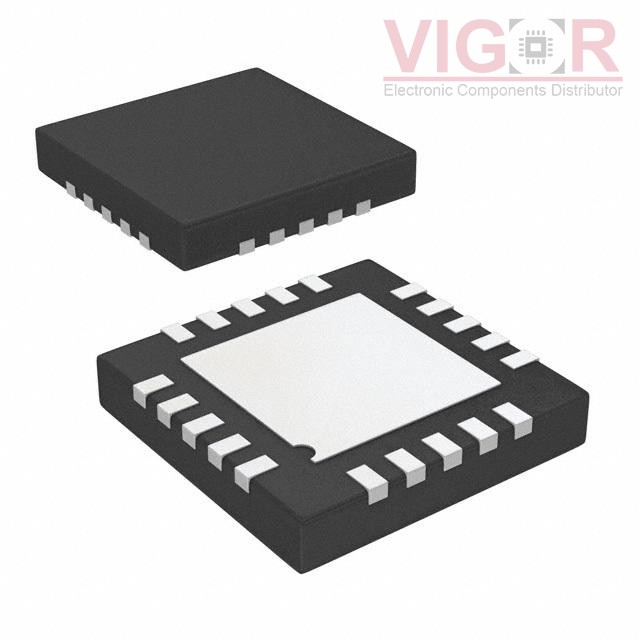

ADG5234BCPZ-RL7

Part No :: ADG5234BCPZ-RL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3927009

Description: IC SW ANLG QUAD SPDT 20LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG5234BCPZ-RL7 PDF

Country of origin: -

Date code: -

ADG5234BCPZ-RL7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	4
On-State Resistance (Max):	160Ohm
Channel-to-Channel Matching (ΔRon):	3.5Ohm
Voltage - Supply, Single (V+):	9V ~ 40V
Voltage - Supply, Dual (V±):	±9V ~ 22V
Switch Time (Ton, Toff) (Max):	200ns, 95ns
-3db Bandwidth:	370MHz
Charge Injection:	0.7pC
Channel Capacitance (CS(off), CD(off)):	4.5pF, 10pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-80dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-WFQFN Exposed Pad, CSP
Supplier Device Package:	20-LFCSP-WQ (4x4)

Alternative Products

Part Number	Manufacturer & Description	Compare
ADG5234BRUZ Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH ANALOG 20-TSSOP	ADG5234BCPZ-RL7 vs ADG5234BRUZ
ADG5234BRUZ-RL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC SW ANLG QUAD SPDT 20TSSOP	ADG5234BCPZ-RL7 vs ADG5234BRUZ-RL7
ADG5233BRUZ Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH ANALOG 16-TSSOP	ADG5234BCPZ-RL7 vs ADG5233BRUZ
DG4052EEY-T1-GE3 Match 93%	Vishay / Siliconix IC MUX DUAL 4CHAN 16-SOIC	ADG5234BCPZ-RL7 vs DG4052EEY-T1-GE3
ADG5233BRUZ-RL7 Match 100%	VIGOR SPDT, 3 FUNC, 1 CHANNEL, CMOS, P	ADG5234BCPZ-RL7 vs ADG5233BRUZ-RL7
ADG5233BCPZ-RL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH SPDT TRIPLE 16LFCSP	ADG5234BCPZ-RL7 vs ADG5233BCPZ-RL7

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 5198

Shipped from

HK warehouse

Expected Shipping Date

Oct 23 - Oct 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.6700~~	~~$7.67~~
1500	~~$4.5522~~	~~$6 828.38~~

Current price of ADG5234BCPZ-RL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

MAX4663EWE

QUAD,SPST ANALOG SWITCH

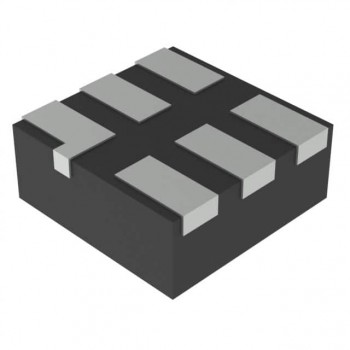

SN74LVC1G3157DTBR

IC SWITCH SPDT SINGLE 6X2SON

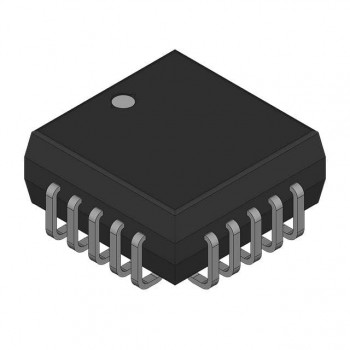

HI4P0201HS-5
