ADG506ATQ

Part No :: ADG506ATQ

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3927168

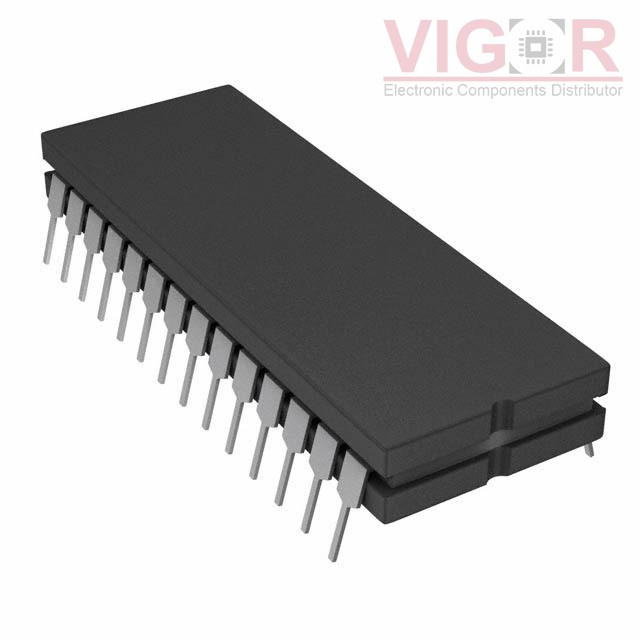

Description: IC MULTIPLEXER 16X1 28CDIP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG506ATQ PDF

Country of origin: -

Date code: -

ADG506ATQ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	16:1
Number of Circuits:	1
On-State Resistance (Max):	300Ohm
Channel-to-Channel Matching (ΔRon):	15Ohm
Voltage - Supply, Single (V+):	10.8V ~ 16.5V
Voltage - Supply, Dual (V±):	±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max):	300ns, 300ns
-3db Bandwidth:	-
Charge Injection:	4pC
Channel Capacitance (CS(off), CD(off)):	5pF, 44pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Through Hole
Package / Case:	28-CDIP (0.600", 15.24mm)
Supplier Device Package:	28-CDIP
