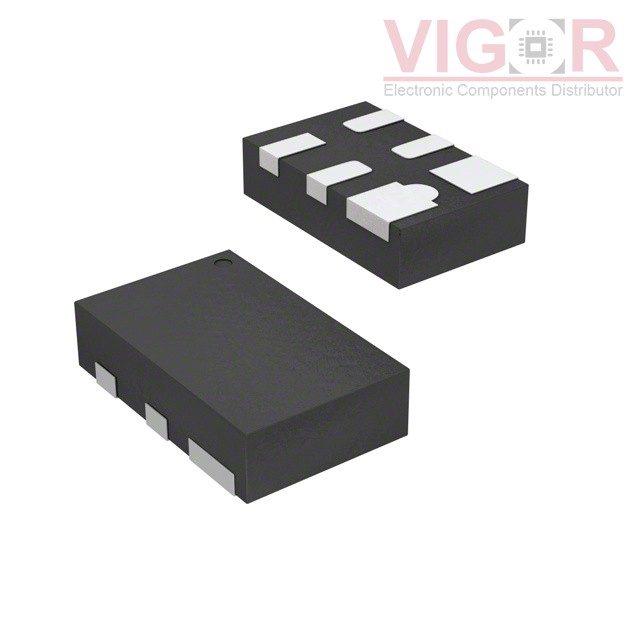

PI5A4157ZUEX

Part No :: PI5A4157ZUEX

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3927192

Description: IC SWITCH SPDT 0.8 OHM 6-UDFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: PI5A4157ZUEX PDF

Country of origin: -

Date code: -

PI5A4157ZUEX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	1
On-State Resistance (Max):	1.2Ohm
Channel-to-Channel Matching (ΔRon):	10mOhm
Voltage - Supply, Single (V+):	1.65V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	18ns, 20ns
-3db Bandwidth:	150MHz
Charge Injection:	35pC
Channel Capacitance (CS(off), CD(off)):	3.5pF
Current - Leakage (IS(off)) (Max):	20nA
Crosstalk:	-70dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	6-UFDFN
Supplier Device Package:	6-UDFN (1x1)

Alternative Products

Part Number	Manufacturer & Description	Compare
TS5A3167DCKR Match 100%	Texas Instruments IC SWITCH SPST SC70-5	PI5A4157ZUEX vs TS5A3167DCKR
TS5A23167YZPR Match 100%	VIGOR TS5A23167 0.9-OHM DUAL SPST ANAL	PI5A4157ZUEX vs TS5A23167YZPR
TS5A23166YZTR Match 100%	VIGOR TS5A23166 0.9-OHM DUAL SPST ANAL	PI5A4157ZUEX vs TS5A23166YZTR
ADG5204BRUZ-RL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC MUX 4:1 170 OHM 14TSSOP	PI5A4157ZUEX vs ADG5204BRUZ-RL7
TS5A3167YZPR Match 100%	VIGOR TS5A3167 1-OHM SPST ANALOG SWITC	PI5A4157ZUEX vs TS5A3167YZPR
TS5A23166YZPR Match 100%	Texas Instruments IC SWITCH DUAL SPST 8DSBGA	PI5A4157ZUEX vs TS5A23166YZPR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 695

Shipped from

HK warehouse

Expected Shipping Date

Sep 04 - Sep 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.1844~~	~~$0.18~~
3000	~~$0.1844~~	~~$553.32~~

Current price of PI5A4157ZUEX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
