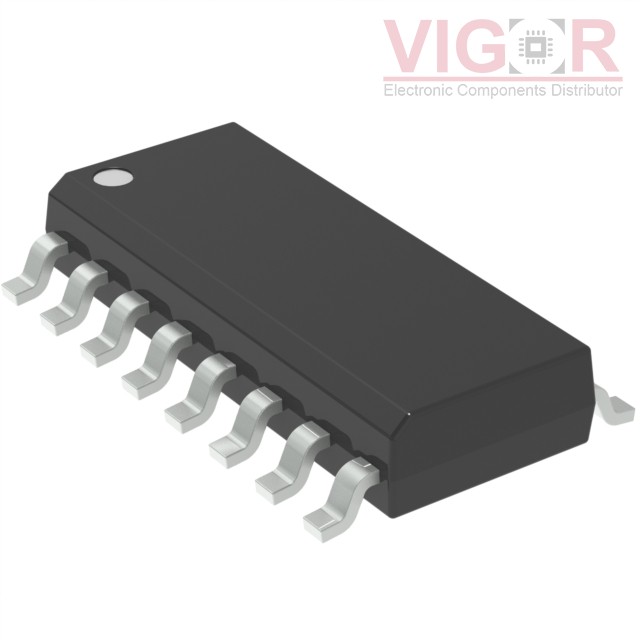

MC74LVXT4053DR2

Part No :: MC74LVXT4053DR2

Manufacturer: VIGOR

VIGOR # :: 3927385

Description: SINGLE-ENDED MUX, 3 FUNC, 2 CH

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: MC74LVXT4053DR2 PDF

Country of origin: -

Date code: -

MC74LVXT4053DR2 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	3
On-State Resistance (Max):	26Ohm
Channel-to-Channel Matching (ΔRon):	10Ohm
Voltage - Supply, Single (V+):	2.5V ~ 6V
Voltage - Supply, Dual (V±):	±6V
Switch Time (Ton, Toff) (Max):	-
-3db Bandwidth:	80MHz
Charge Injection:	12pC
Channel Capacitance (CS(off), CD(off)):	10pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SOIC
