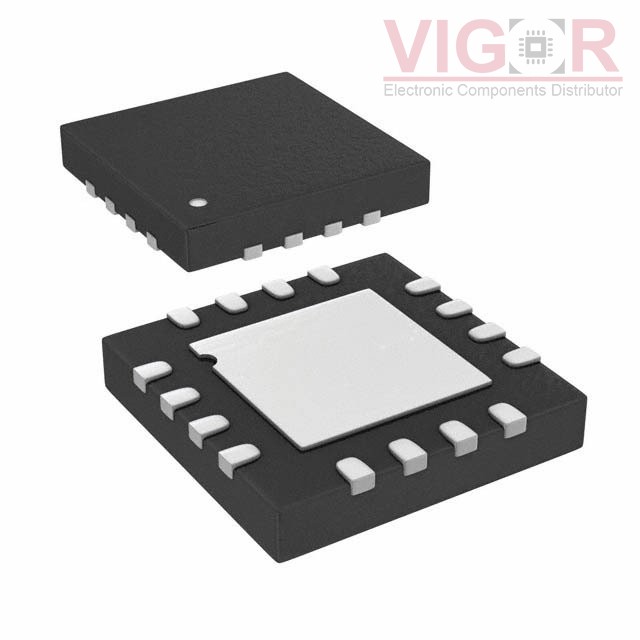

ADG774ABCPZ-R2

Part No :: ADG774ABCPZ-R2

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3927531

Description: IC MUX QUAD 2X1 16LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG774ABCPZ-R2 PDF

Country of origin: -

Date code: -

ADG774ABCPZ-R2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	4
On-State Resistance (Max):	3.5Ohm
Channel-to-Channel Matching (ΔRon):	150mOhm
Voltage - Supply, Single (V+):	3V ~ 5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	12ns, 6ns
-3db Bandwidth:	400MHz
Charge Injection:	6pC
Channel Capacitance (CS(off), CD(off)):	5pF, 7.5pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-70dB @ 10MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-WFQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP (3x3)
