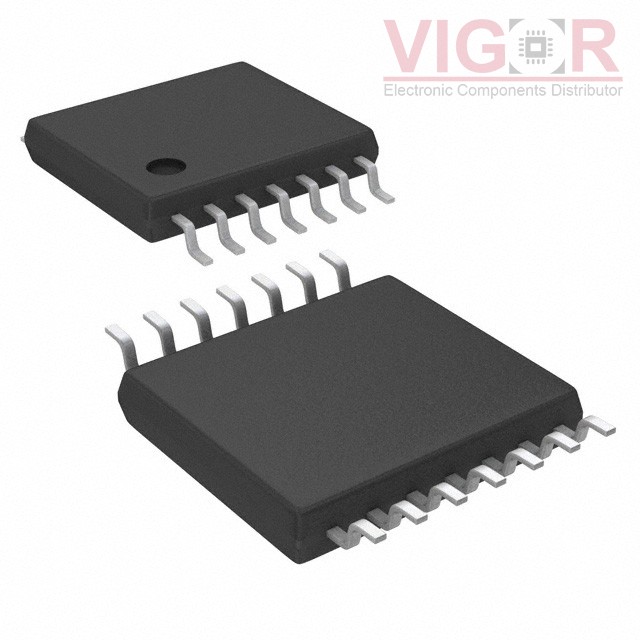

MAX4747EUD+

Part No :: MAX4747EUD+

Manufacturer: Maxim Integrated

VIGOR # :: 3927630

Description: IC SWITCH QUAD SPST 14TSSOP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: MAX4747EUD+ PDF

Country of origin: -

Date code: -

MAX4747EUD+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SPST - NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	25Ohm
Channel-to-Channel Matching (ΔRon):	100mOhm
Voltage - Supply, Single (V+):	2V ~ 11V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	85ns, 45ns
-3db Bandwidth:	250MHz
Charge Injection:	9pC
Channel Capacitance (CS(off), CD(off)):	20pF, 20pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-84dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	14-TSSOP

Alternative Products
