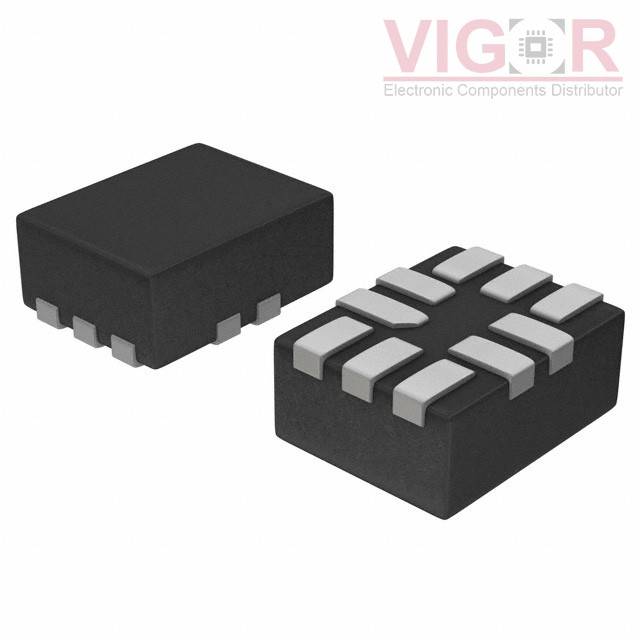

NLAS5223MNR2G

Part No :: NLAS5223MNR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC SWITCH DUAL SPDT 10WQFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: NLAS5223MNR2G PDF

Availability: 250 pieces

Unit Price: ~~$1.07000~~

Current price of NLAS5223MNR2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NLAS5223MNR2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	300mOhm
Channel-to-Channel Matching (ΔRon):	50mOhm (Max)
Voltage - Supply, Single (V+):	1.65V ~ 3.6V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	50ns, 30ns
-3db Bandwidth:	17MHz
Charge Injection:	38pC
Channel Capacitance (CS(off), CD(off)):	75pF
Current - Leakage (IS(off)) (Max):	500nA
Crosstalk:	-70dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-WFQFN
Supplier Device Package:	10-WQFN (1.4x1.8)
