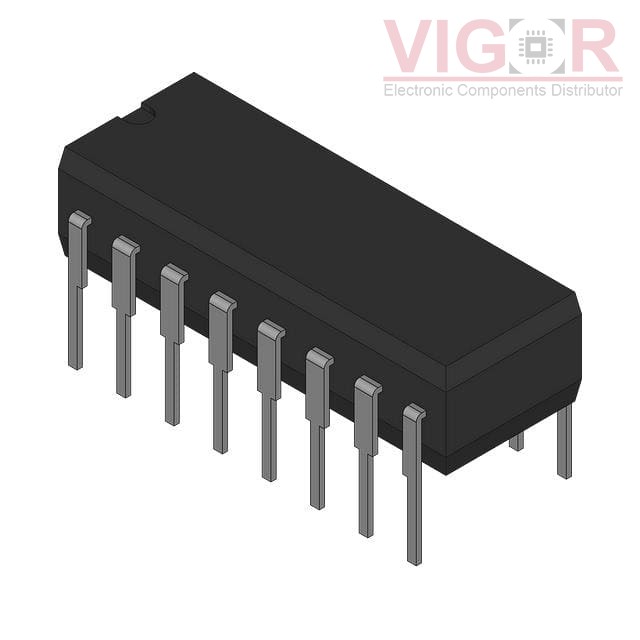

HI1-0509A-5

Part No :: HI1-0509A-5

Manufacturer: VIGOR

VIGOR # :: 3927886

Description: DIFFERENTIAL MUX, 4 CHANNEL

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: HI1-0509A-5 PDF

Country of origin: -

Date code: -

HI1-0509A-5 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	1.8kOhm
Channel-to-Channel Matching (ΔRon):	-
Voltage - Supply, Single (V+):	-
Voltage - Supply, Dual (V±):	±15V
Switch Time (Ton, Toff) (Max):	300ns, 300ns (Typ)
-3db Bandwidth:	-
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	10pF, 12pF
Current - Leakage (IS(off)) (Max):	30pA (Typ)
Crosstalk:	-
Operating Temperature:	0°C ~ 75°C (TA)
Mounting Type:	Through Hole
Package / Case:	16-CDIP (0.300", 7.62mm)
Supplier Device Package:	16-CERDIP
