HI1-0201HS-2

HI1-0201HS-2

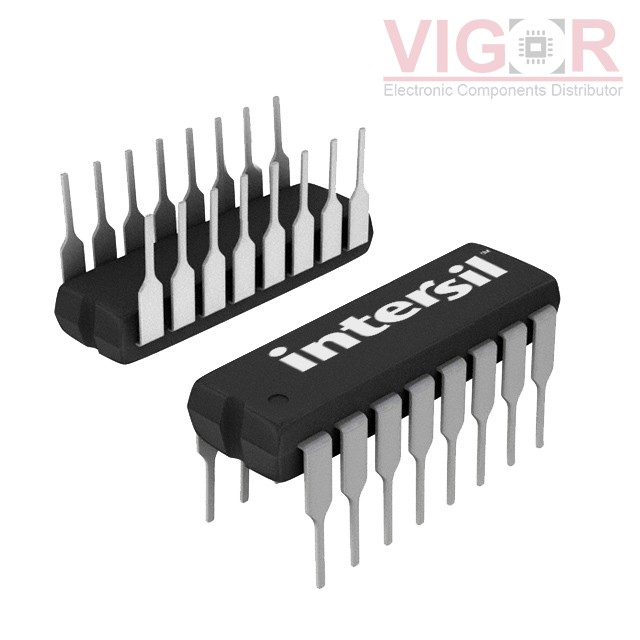

Image is for reference,
please contact us to get the real picture

Part No :

HI1-0201HS-2

Manufacturer
VIGOR
Description
QUAD SPST CMOS ANALOG SWITCH
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Oct 10 - Oct 14 2025
DataSheet
HI1-0201HS-2 PDF
Availability
342 pieces
Unit Price
$13.15000

Current price of HI1-0201HS-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HI1-0201HS-2 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Switch Circuit:SPST - NC
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:4
On-State Resistance (Max):50Ohm
Channel-to-Channel Matching (ΔRon):1.5Ohm
Voltage - Supply, Single (V+):-
Voltage - Supply, Dual (V±):±15V
Switch Time (Ton, Toff) (Max):50ns, 50ns
-3db Bandwidth:-
Charge Injection:10pC
Channel Capacitance (CS(off), CD(off)):10pF, 10pF
Current - Leakage (IS(off)) (Max):10nA
Crosstalk:-86dB @ 100kHz
Operating Temperature:-55°C ~ 125°C (TA)
Mounting Type:Through Hole
Package / Case:16-CDIP (0.300", 7.62mm)
Supplier Device Package:16-CERDIP
