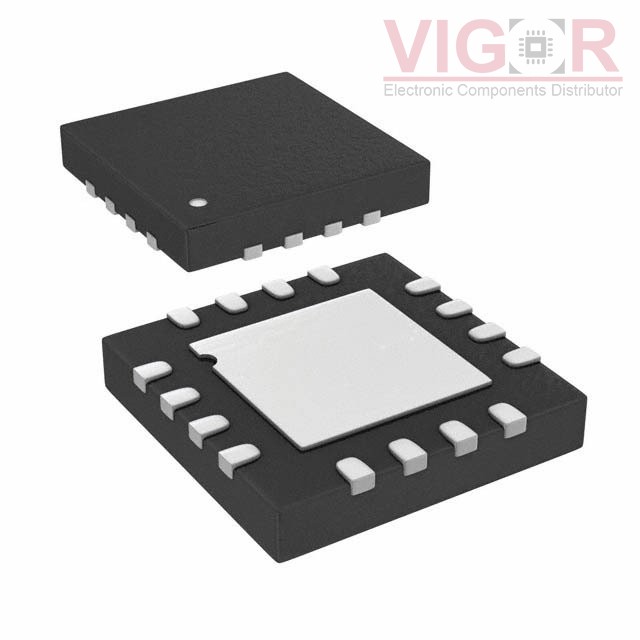

ADG5409TCPZ-EP

Part No :: ADG5409TCPZ-EP

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3928359

Description: IC MUX 2 X 4:1 14 OHM 16LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG5409TCPZ-EP PDF

Country of origin: -

Date code: -

ADG5409TCPZ-EP Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	14Ohm
Channel-to-Channel Matching (ΔRon):	300mOhm
Voltage - Supply, Single (V+):	9V ~ 40V
Voltage - Supply, Dual (V±):	±9V ~ 22V
Switch Time (Ton, Toff) (Max):	165ns, 153ns
-3db Bandwidth:	88MHz
Charge Injection:	155pC
Channel Capacitance (CS(off), CD(off)):	17pF, 48pF
Current - Leakage (IS(off)) (Max):	250pA
Crosstalk:	-60dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-WQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP-WQ (4x4)
