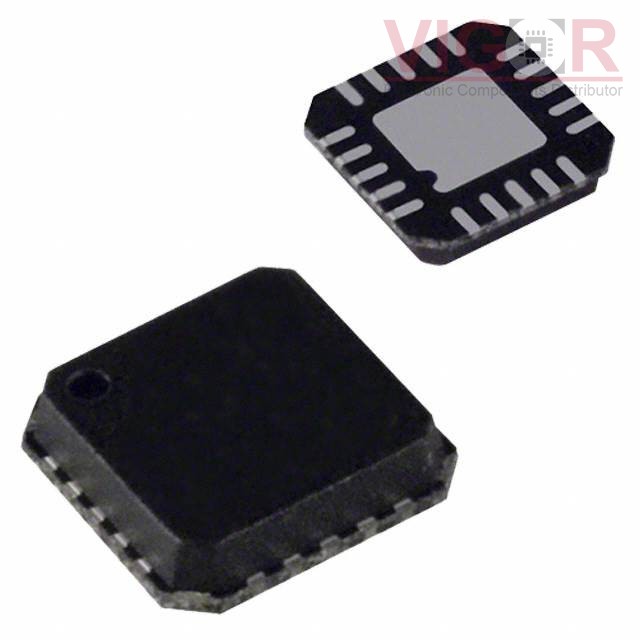

ADG759BCPZ-REEL

Part No :: ADG759BCPZ-REEL

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3928456

Description: IC MULTIPLEXER DUAL 4X1 20LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG759BCPZ-REEL PDF

Country of origin: -

Date code: -

ADG759BCPZ-REEL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	4.5Ohm
Channel-to-Channel Matching (ΔRon):	-
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	±2.5V
Switch Time (Ton, Toff) (Max):	14ns, 8ns (Typ)
-3db Bandwidth:	55MHz
Charge Injection:	3pC
Channel Capacitance (CS(off), CD(off)):	13pF, 42pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-80dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-WFQFN Exposed Pad, CSP
Supplier Device Package:	20-LFCSP-WQ (4x4)
