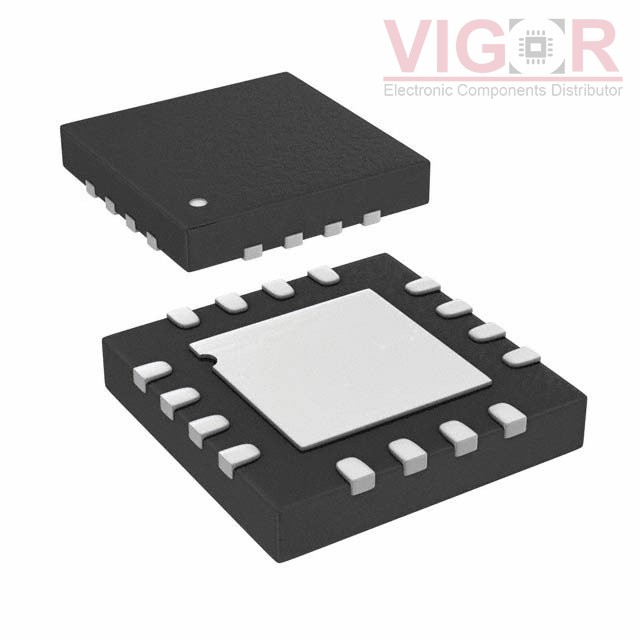

ADG5412WBCPZ-REEL7

Part No :: ADG5412WBCPZ-REEL7

Manufacturer: VIGOR

VIGOR # :: 3928549

Description: SPST

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG5412WBCPZ-REEL7 PDF

Country of origin: -

Date code: -

ADG5412WBCPZ-REEL7 Specifications

Type	Description
Series:	Automotive
Package:	Bulk
Part Status:	Active
Switch Circuit:	SPST - NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	15Ohm
Channel-to-Channel Matching (ΔRon):	350mOhm
Voltage - Supply, Single (V+):	9V ~ 40V
Voltage - Supply, Dual (V±):	±9V ~ 22V
Switch Time (Ton, Toff) (Max):	240ns, 170ns
-3db Bandwidth:	160MHz
Charge Injection:	310pC
Channel Capacitance (CS(off), CD(off)):	17pF, 17pF
Current - Leakage (IS(off)) (Max):	10nA
Crosstalk:	-70dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-WQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP-WQ (4x4)
