TS5A23159RSER

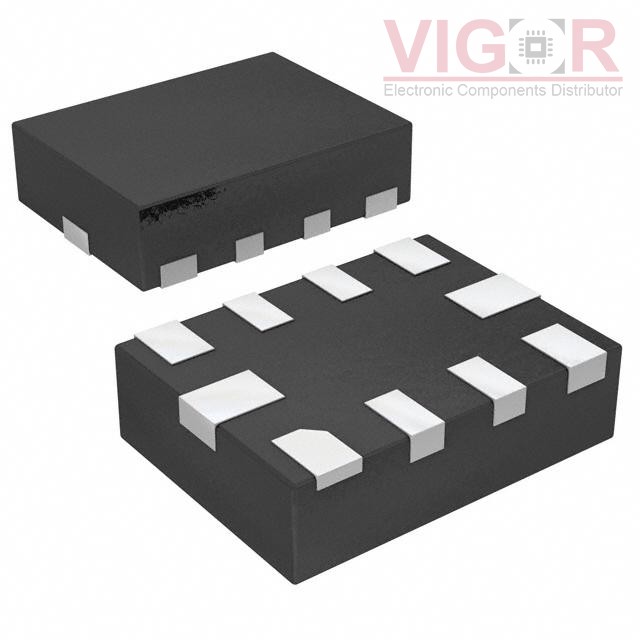

Image is for reference,
please contact us to get the real picture

Part No :: TS5A23159RSER

Manufacturer: Texas Instruments

Description: IC SWITCH DUAL SPDT 10UQFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: TS5A23159RSER PDF

Availability: 1130 pieces

Unit Price: ~~$0.98000~~

Current price of TS5A23159RSER is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TS5A23159RSER Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	900mOhm
Channel-to-Channel Matching (ΔRon):	50mOhm
Voltage - Supply, Single (V+):	1.65V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	13ns, 8ns
-3db Bandwidth:	100MHz
Charge Injection:	-7pC
Channel Capacitance (CS(off), CD(off)):	18pF
Current - Leakage (IS(off)) (Max):	20nA
Crosstalk:	-64dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-UFQFN
Supplier Device Package:	10-UQFN (2.0x1.5)

Please confirm the specifications of the products when ordering.
