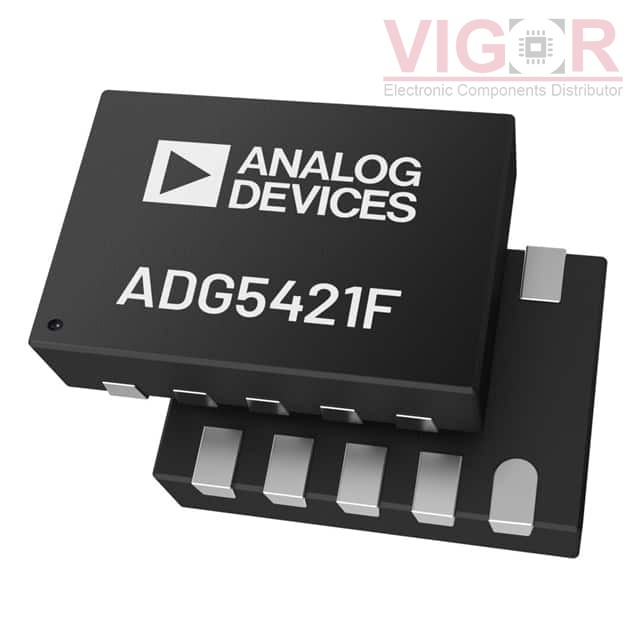

ADG5421FBCPZ-RL7

Part No :: ADG5421FBCPZ-RL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: 60V OV PROTECTED, HV SPSTX2 SWIT

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG5421FBCPZ-RL7 PDF

Availability: 100 pieces

Unit Price: ~~$57.00000~~

Current price of ADG5421FBCPZ-RL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADG5421FBCPZ-RL7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Circuit:	SPST - NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	2
On-State Resistance (Max):	14Ohm
Channel-to-Channel Matching (ΔRon):	20mOhm
Voltage - Supply, Single (V+):	8V ~ 44V, ±5V ~ 22V
Voltage - Supply, Dual (V±):	8V ~ 44V, ±5V ~ 22V
Switch Time (Ton, Toff) (Max):	15.9µs, 160ns
-3db Bandwidth:	630MHz
Charge Injection:	-150pC
Channel Capacitance (CS(off), CD(off)):	6pF, 5pF
Current - Leakage (IS(off)) (Max):	200pA
Crosstalk:	-78dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	10-WFDFN Exposed Pad, CSP
Supplier Device Package:	10-LFCSP (3x2)
