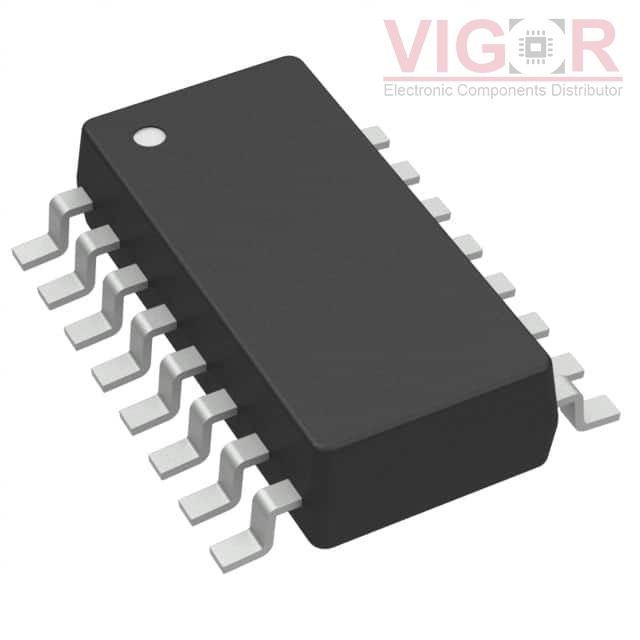

TMUX1309QDYYRQ1

Part No :: TMUX1309QDYYRQ1

Manufacturer: Texas Instruments

VIGOR # :: 3929286

Description: AUTOMOTIVE, 2-CHANNEL, 4:1 GENER

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: TMUX1309QDYYRQ1 PDF

Country of origin: -

Date code: -

TMUX1309QDYYRQ1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	195Ohm
Channel-to-Channel Matching (ΔRon):	7Ohm
Voltage - Supply, Single (V+):	1.62V ~ 5.5V
Voltage - Supply, Dual (V±):	1.62V ~ 5.5V
Switch Time (Ton, Toff) (Max):	32ns, 40ns
-3db Bandwidth:	500MHz
Charge Injection:	-6.5pC
Channel Capacitance (CS(off), CD(off)):	14pF, 7pF
Current - Leakage (IS(off)) (Max):	1pA (Typ)
Crosstalk:	-90dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	SOT-23-16 Thin, SOT-23 Variant
Supplier Device Package:	16-SOT-23-THIN

Alternative Products

Part Number	Manufacturer & Description	Compare
74LVC1G384GXH Match 100%	VIGOR 74LVC1G384 - BILATERAL SWITCH	TMUX1309QDYYRQ1 vs 74LVC1G384GXH
74LVC2G66DC-Q100H Match 100%	Nexperia IC BILATERAL SWITCH 8VSSOP	TMUX1309QDYYRQ1 vs 74LVC2G66DC-Q100H
74LVC1G66GM,115 Match 100%	Nexperia IC SWITCH SPST 6XSON	TMUX1309QDYYRQ1 vs 74LVC1G66GM,115
74LVC2G66GN,115 Match 100%	Nexperia 74LVC2G66GN/SOT1116/X2SON8	TMUX1309QDYYRQ1 vs 74LVC2G66GN,115
74LVC2G66DC,125 Match 100%	Nexperia IC SWITCH DUAL SPST 8VSSOP	TMUX1309QDYYRQ1 vs 74LVC2G66DC,125
74LVC2G66DP,125 Match 100%	Nexperia IC SWITCH DUAL SPST 8TSSOP	TMUX1309QDYYRQ1 vs 74LVC2G66DP,125

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1962

Shipped from

HK warehouse

Expected Shipping Date

Sep 05 - Sep 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.4800~~	~~$0.48~~

Current price of TMUX1309QDYYRQ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
