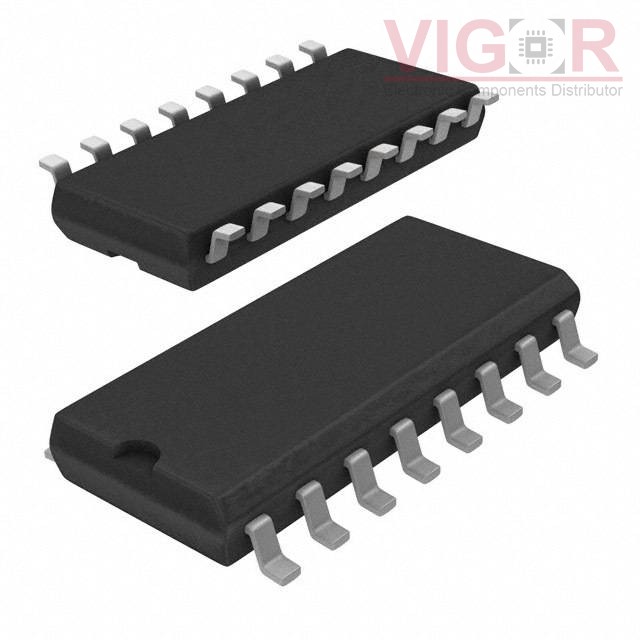

MC74HC4053AF

Part No :: MC74HC4053AF

Manufacturer: VIGOR

VIGOR # :: 3929534

Description: SINGLE-ENDED MUX, 3 FUNC, 2 CH

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: MC74HC4053AF PDF

Country of origin: -

Date code: -

MC74HC4053AF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	3
On-State Resistance (Max):	100Ohm
Channel-to-Channel Matching (ΔRon):	10Ohm
Voltage - Supply, Single (V+):	2V ~ 6V
Voltage - Supply, Dual (V±):	±2V ~ 6V
Switch Time (Ton, Toff) (Max):	-
-3db Bandwidth:	120MHz
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	50pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-60dB @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package:	16-SOEIAJ

Alternative Products

Part Number	Manufacturer & Description	Compare
MC74VHC4053DTR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX TRIPLE 2X1 16TSSOP	MC74HC4053AF vs MC74VHC4053DTR2G
MC74HC4053ADG Match 100%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX TRIPLE 2X1 16SOIC	MC74HC4053AF vs MC74HC4053ADG
NLVVHC4053DTR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX DUAL 4X1 16TSSOP	MC74HC4053AF vs NLVVHC4053DTR2G
MC74VHC4053DTR2 Match 100%	VIGOR SINGLE-ENDED MUX, 6 CHANNEL	MC74HC4053AF vs MC74VHC4053DTR2
MC74HC4053ADR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX TRIPLE 2X1 16SOIC	MC74HC4053AF vs MC74HC4053ADR2G
MC74HC4053ADWR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX TRIPLE 2X1 16SOIC	MC74HC4053AF vs MC74HC4053ADWR2G

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3050

Shipped from

HK warehouse

Expected Shipping Date

Jul 26 - Jul 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.1700~~	~~$0.17~~

Current price of MC74HC4053AF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

ADG428BRZ

IC MULTIPLEXER 8X1 18SOIC

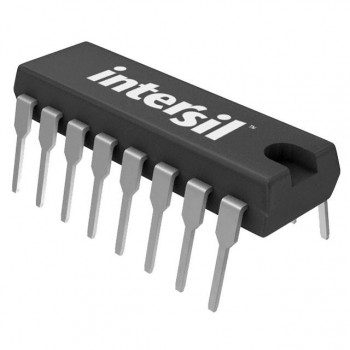

DG412DJZ

IC SWITCH QUAD SPST 16DIP

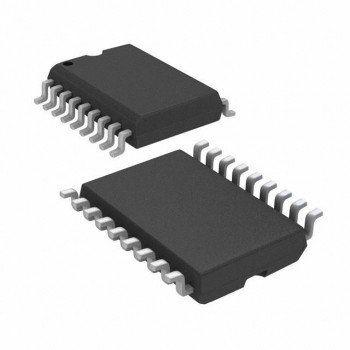

MAX368CWN+
