MUX509ID

Part No :: MUX509ID

Manufacturer: Texas Instruments

VIGOR # :: 3929611

Description: IC MUX DUAL 4:1 170 OHM 16SOIC

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: MUX509ID PDF

Country of origin: -

Date code: -

MUX509ID Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	170Ohm
Channel-to-Channel Matching (ΔRon):	2.4Ohm
Voltage - Supply, Single (V+):	10V ~ 36V
Voltage - Supply, Dual (V±):	±5V ~ 18V
Switch Time (Ton, Toff) (Max):	136ns, 75ns
-3db Bandwidth:	-
Charge Injection:	0.3pC
Channel Capacitance (CS(off), CD(off)):	2.4pF, 4.3pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-96dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SOIC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 360

Shipped from

HK warehouse

Expected Shipping Date

Aug 28 - Sep 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.0473~~	~~$2.05~~
240	~~$2.0378~~	~~$489.06~~

Current price of MUX509ID is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

ADG409BRZ

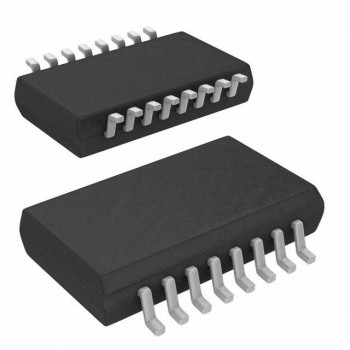

IC MULTIPLEXER DUAL 4X1 16SOIC

MPC509AUG4

MPC509 4-CHANNEL DIFFERENTIAL-IN

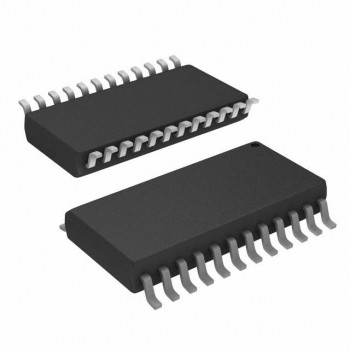

CD4097BME4
